This model showcases a column splice constructed with identical I-sections. It features bolted connections and is reinforced with external cover plates, emphasizing the importance of secure bearing column splices in structural engineering.

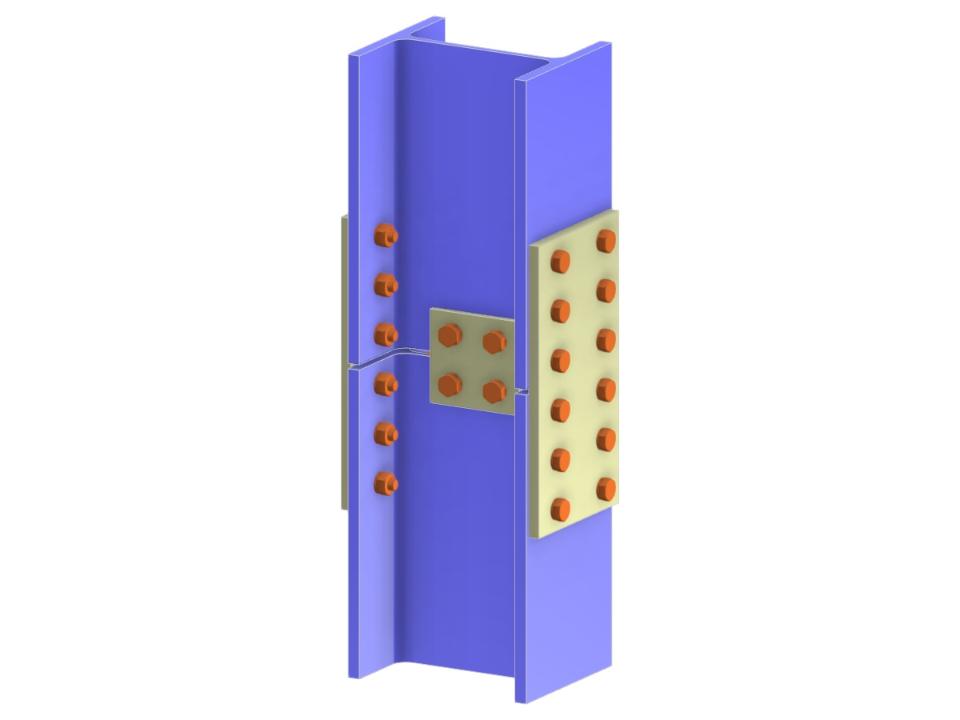

Column Splice with Non-Bearing External Cover Plates
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 3 |
| Number of Result Combinations | 1 |
| Total Weight | 0.284 tons |
| Dimensions (Metric) | 0.000 x 2.000 x 0.000 m |
| Dimensions (Imperial) | 0 x 6.56 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
