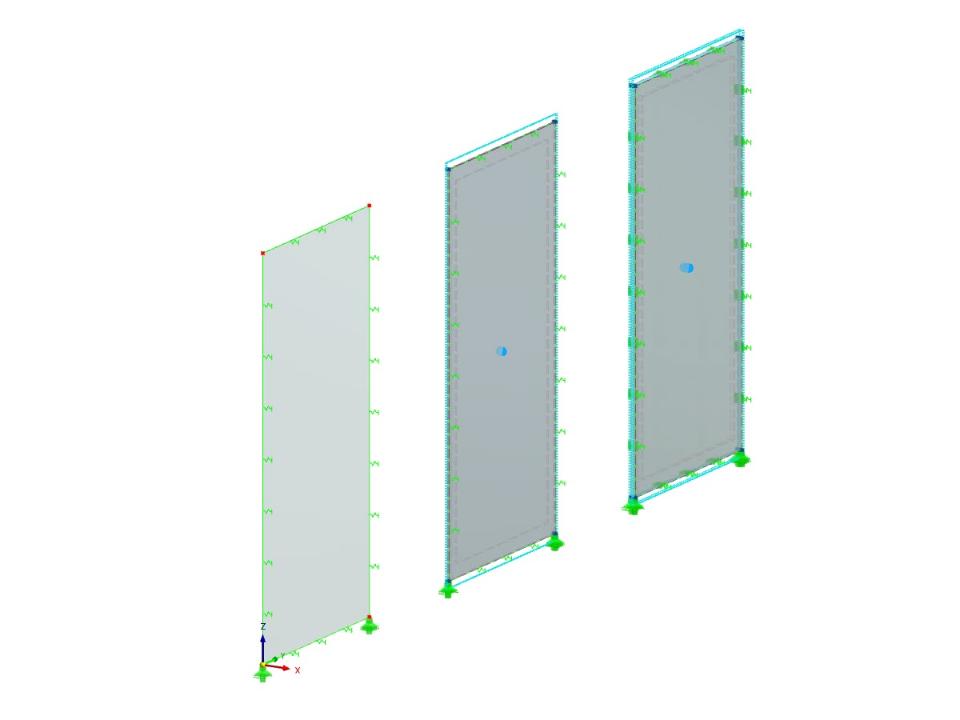

This model features a laminated and insulated glass panel, also known as an Insulating Glass Unit (IGU), with design specifications based on the ASTM E1300-24 standard. IGUs enhance thermal performance and sound insulation. This model demonstrates advanced techniques for glass design, providing insights into structural safety and energy efficiency. Ideal for architectural applications requiring high-performance glass. Learn more about glass structure and efficiency.
Model Used in
Laminated and Insulated Glass Panels | ASTM E1300-24
| Number of Nodes | 76 |
| Number of Lines | 128 |
| Number of Members | 0 |
| Number of Surfaces | 70 |
| Number of Solids | 13 |
| Number of Load Cases | 9 |
| Number of Load Combinations | 93 |
| Number of Result Combinations | 0 |
| Total Weight | 0.579 tons |
| Dimensions (Metric) | 0.033 x 2.438 x 5.486 m |
| Dimensions (Imperial) | 0.11 x 8 x 18 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
