This model represents a composite slab made of timber and concrete. The combination of these materials is used to obtain the structural benefits of both, such as the lightness of timber and the compressive strength of concrete. Ideal for projects that require material efficiency and natural aesthetics, this structural approach is common in sustainable construction.

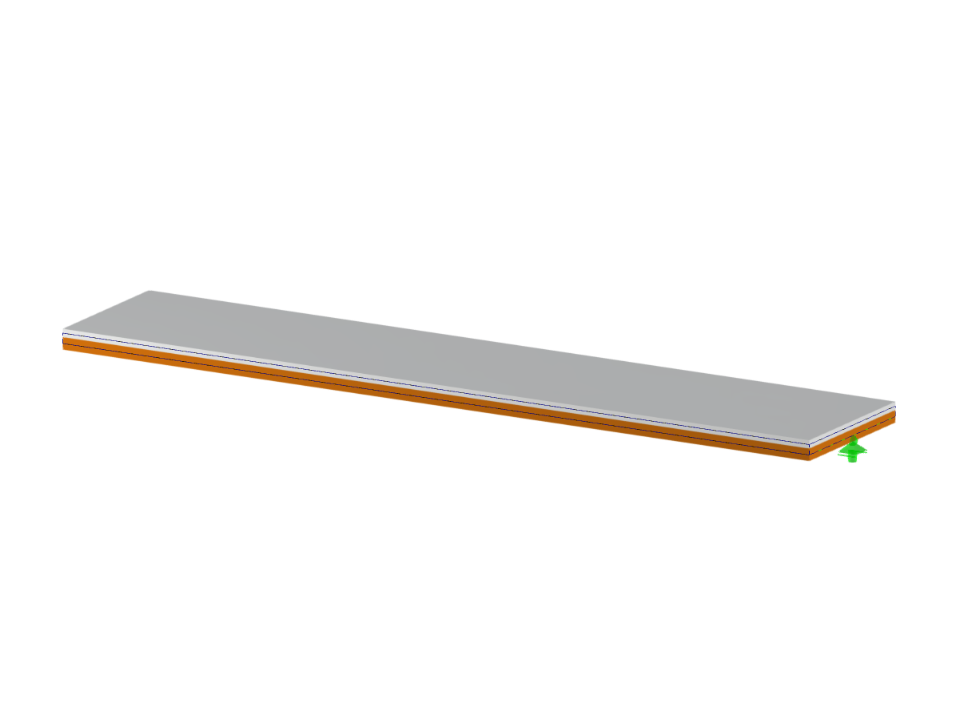

Timber-Concrete Composite Floor
| Number of Nodes | 12 |
| Number of Lines | 14 |
| Number of Members | 0 |
| Number of Surfaces | 2 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 6,650 t |
| Dimensions (Metric) | 10,000 x 0,125 x 2,000 m |
| Dimensions (Imperial) | 32.81 x 0.41 x 6.56 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
