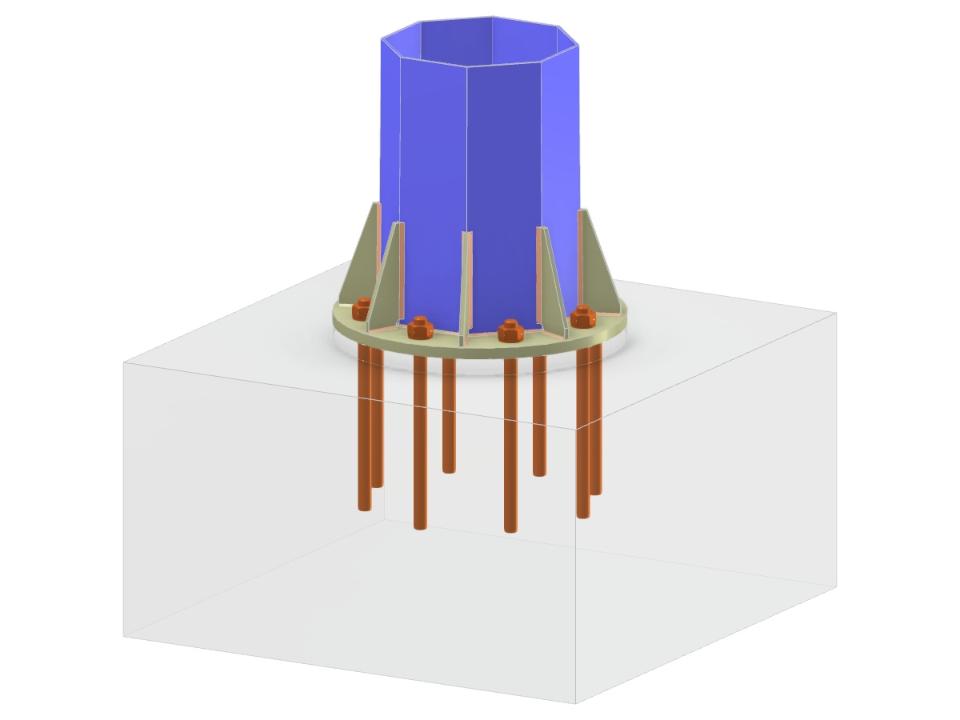

This model features a sophisticated column base design with an octagonal base plate complemented by reinforcing ribs. It utilizes a hollow section for enhanced structural performance and comprehensive anchoring to ensure stability. The design accommodates various load scenarios, making it adaptable for different engineering needs.
Column Base
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 8 |
| Number of Result Combinations | 0 |
| Total Weight | 0.033 tons |
| Dimensions (Metric) | 0,000 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 0 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
