This model demonstrates structural bracing using crossing diagonals connected with gusset and tongue plates. It features hollow cross-sections, focusing on rectangular hollow sections (RHS) with bolted X-joints. Emphasizing the connection detail, it provides insights into the stability and efficiency of the bracing system.

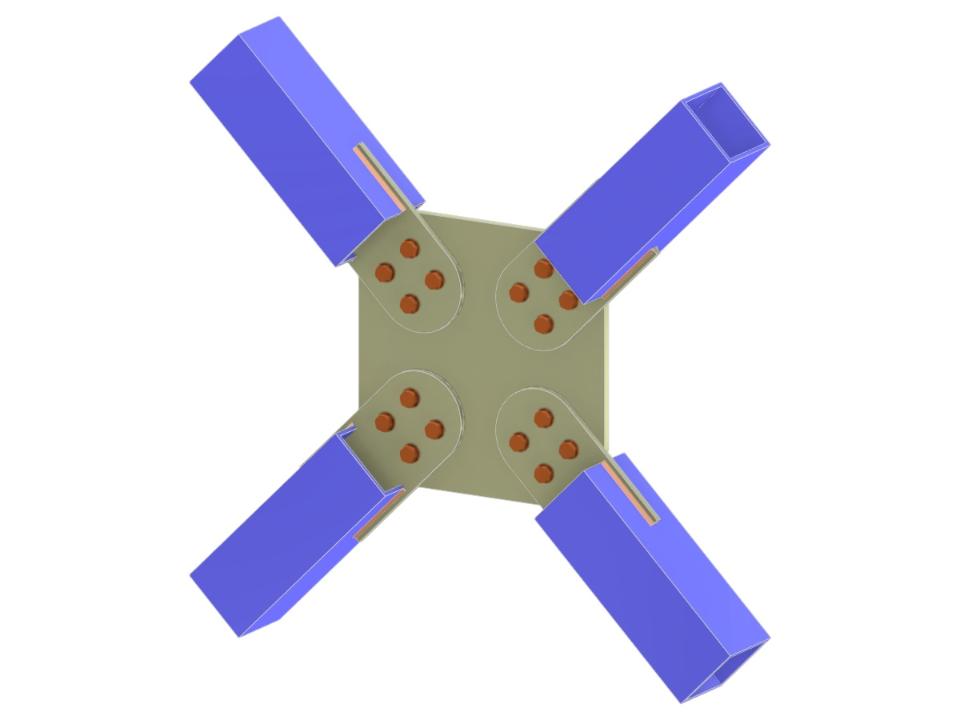

Bracing X-Joint | Diagonal to Diagonal Connection via Gusset Plate and Tongue Plate
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.030 tons |
| Dimensions (Metric) | 0,700 x 0,700 x 0,000 m |
| Dimensions (Imperial) | 2.3 x 2.3 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
