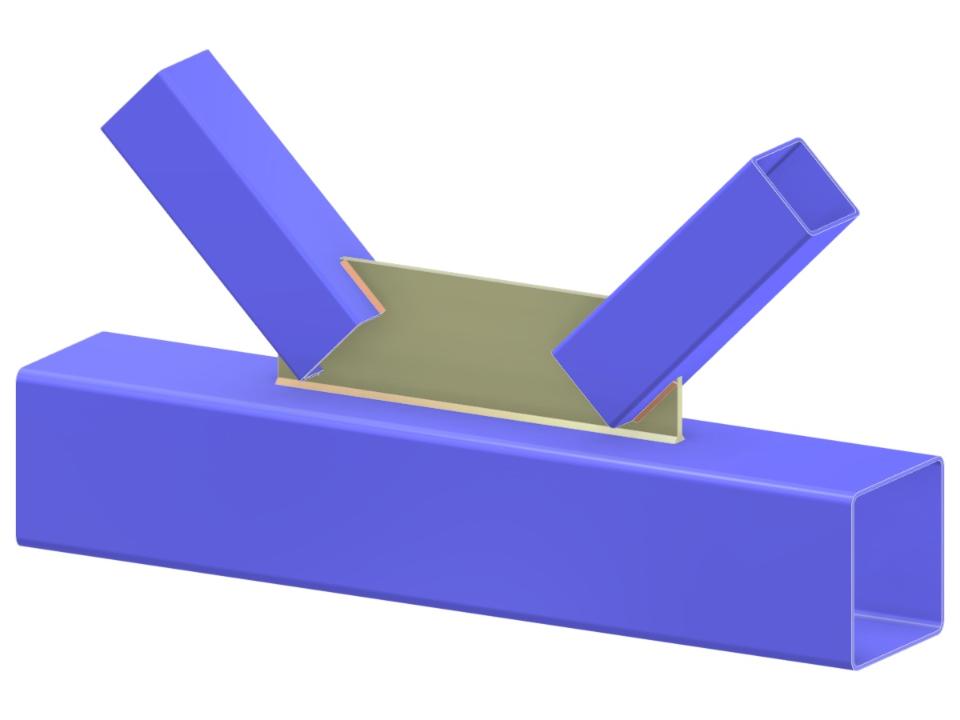

This model illustrates a truss structure featuring a K-joint connection. It utilizes notched gusset plates welded to hollow cross-sections specifically designed as rectangular hollow sections (RHS). The setup includes diagonals connected to the chord element, providing an efficient load transfer. Such configurations are critical in applications that require precise force distribution within the truss system.
Truss K-Joint | Diagonals to Chord Connection via Gusset Plate
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.061 tons |
| Dimensions (Metric) | 1.160 x 0.450 x 0.000 m |
| Dimensions (Imperial) | 3.81 x 1.48 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
