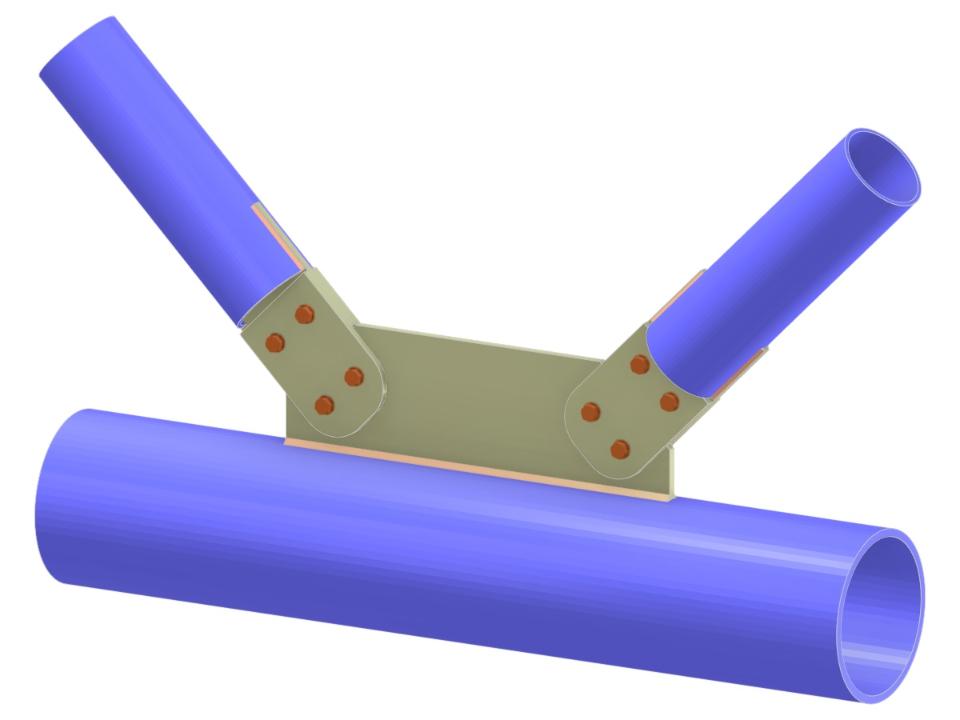

This model showcases a truss structure featuring a K-joint with hollow circular sections (CHS). The connections utilize bolted gusset plates, notched tongue plates, and cover plates to effectively transfer loads. Such structural details are essential in ensuring stability and efficiency in truss designs.
Truss K-Joint | Diagonals to Chord Connection via Gusset Plate, Tongue Plate, and Cover Plates
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.084 tons |
| Dimensions (Metric) | 1,170 x 0,585 x 0,000 m |
| Dimensions (Imperial) | 3.84 x 1.92 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
