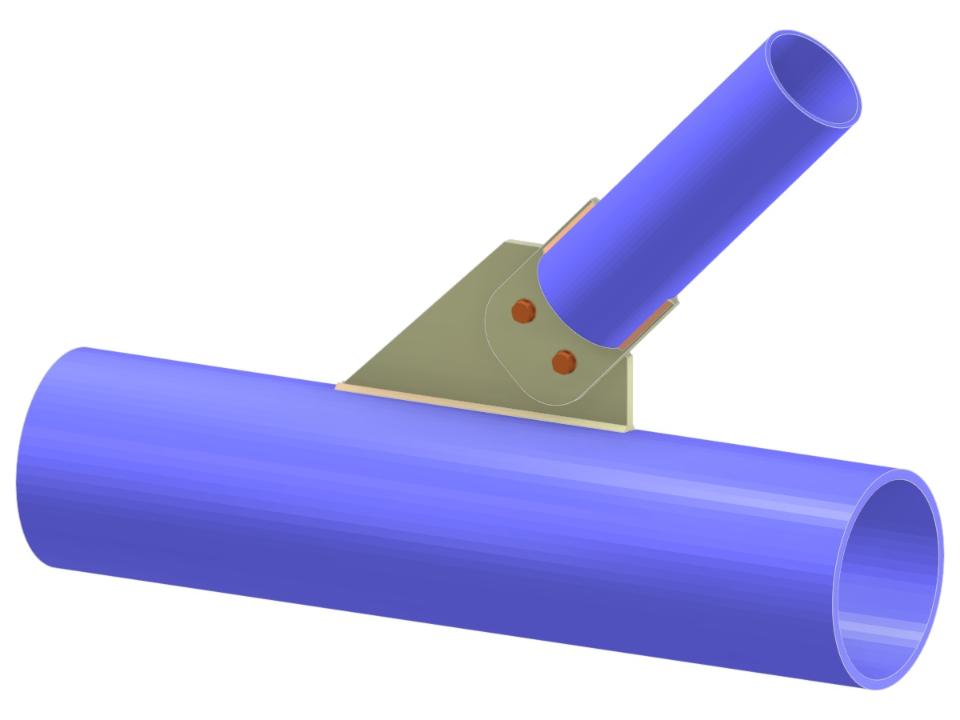

This model features a truss with a Y-joint supported by gusset plates and a bolted notched tongue plate. The structure utilizes hollow cross-sections, specifically circular hollow sections (CHS), providing it with enhanced structural efficiency and stability. Ideal for applications where strength and aesthetics are paramount, this model showcases the versatility of bolted connections in modern construction.
Truss Y-Joint | Diagonal to Chord Connection via Gusset Plate and Tongue Plate
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.059 tons |
| Dimensions (Metric) | 0,940 x 0,500 x 0,000 m |
| Dimensions (Imperial) | 3.08 x 1.64 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
