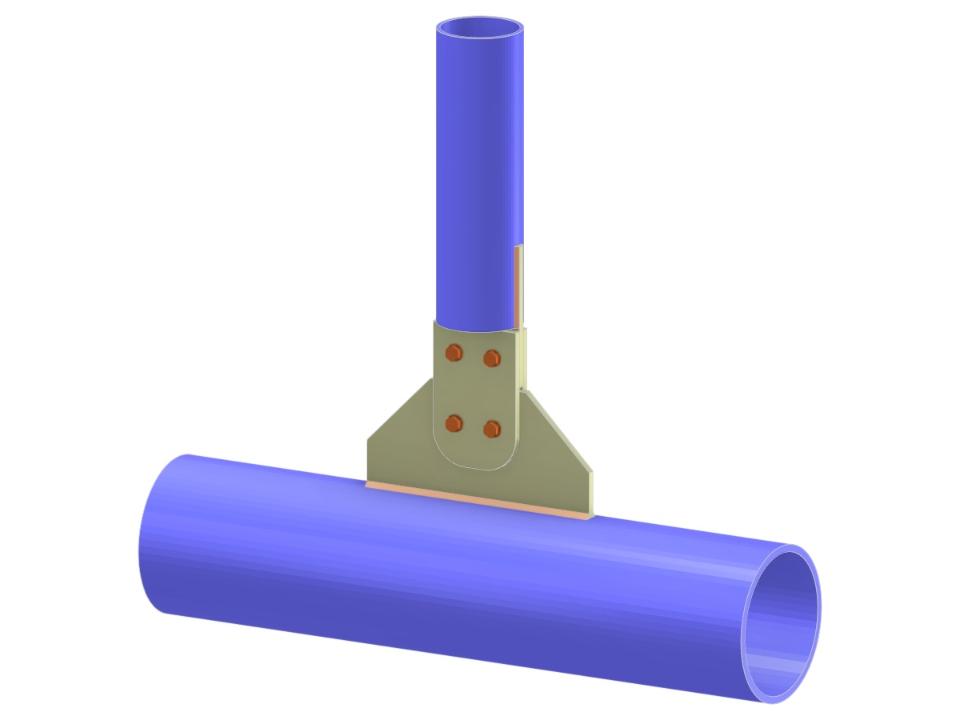

This model represents a truss T-joint with hollow cross-sections (CHS), featuring a vertical member connection to the chord. It utilizes a notched tongue plate and cover plates that are bolted together. This setup is commonly used in structures requiring efficient load transfer and stability. The gusset plate design enhances joint strength and performance.
Truss T-Joint | Vertical to Chord Connection via Gusset Plate, Tongue Plate, and Cover Plates
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.063 tons |
| Dimensions (Metric) | 1,000 x 0,790 x 0,000 m |
| Dimensions (Imperial) | 3.28 x 2.59 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
