The model features a truss T-joint with a bolted configuration, incorporating vertical to chord connections using gusset, tongue, and cap plates. It employs circular hollow sections (CHS) to create an efficient structural connection. The joint design is suitable for various engineering applications requiring robust and versatile solutions.

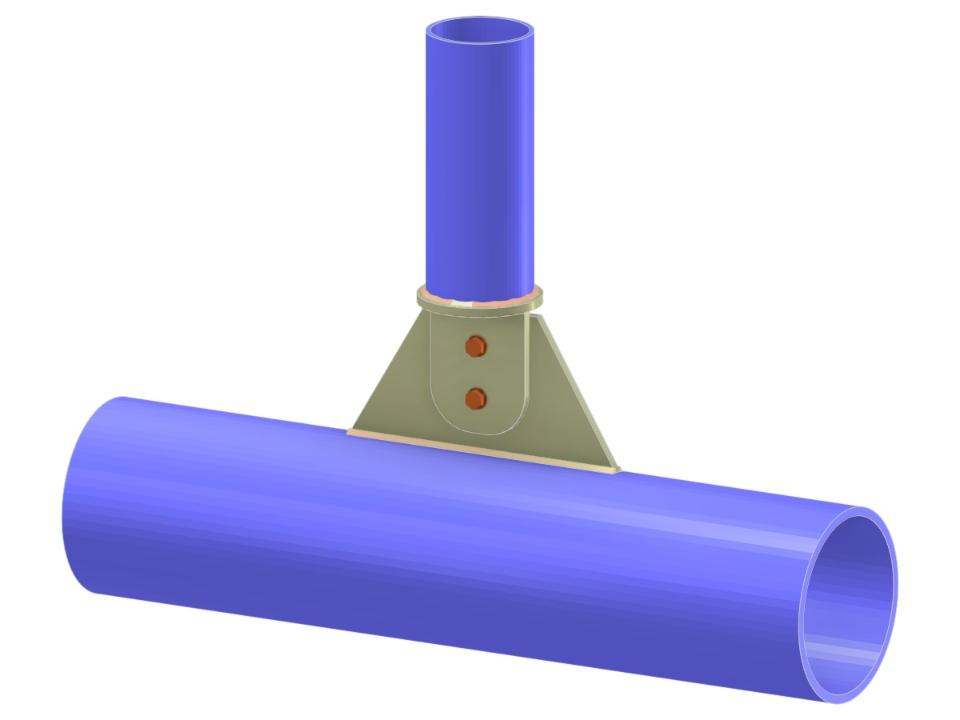

Truss T-Joint | Vertical to Chord Connection via Gusset Plate, Tongue Plate, and Cap Plate
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.058 tons |
| Dimensions (Metric) | 0,960 x 0,600 x 0,000 m |
| Dimensions (Imperial) | 3.15 x 1.97 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
