This model features a truss connection designed with a vertical chord, incorporating a gusset plate and a fin plate. The connection is bolted, forming a T-joint which is commonly used in structural engineering to join truss elements securely. Such configurations are critical in ensuring structural integrity and proper load distribution.

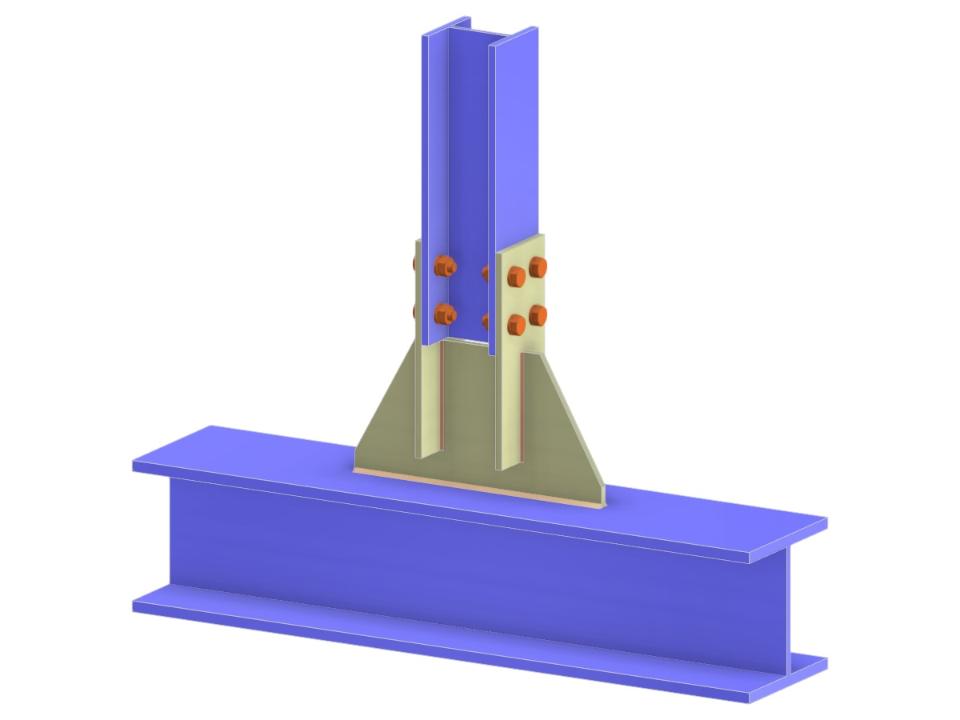

Truss T-Joint | Vertical to Chord Connection via Gusset Plate and Fin Plate
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.164 tons |
| Dimensions (Metric) | 2,000 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 6.56 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
