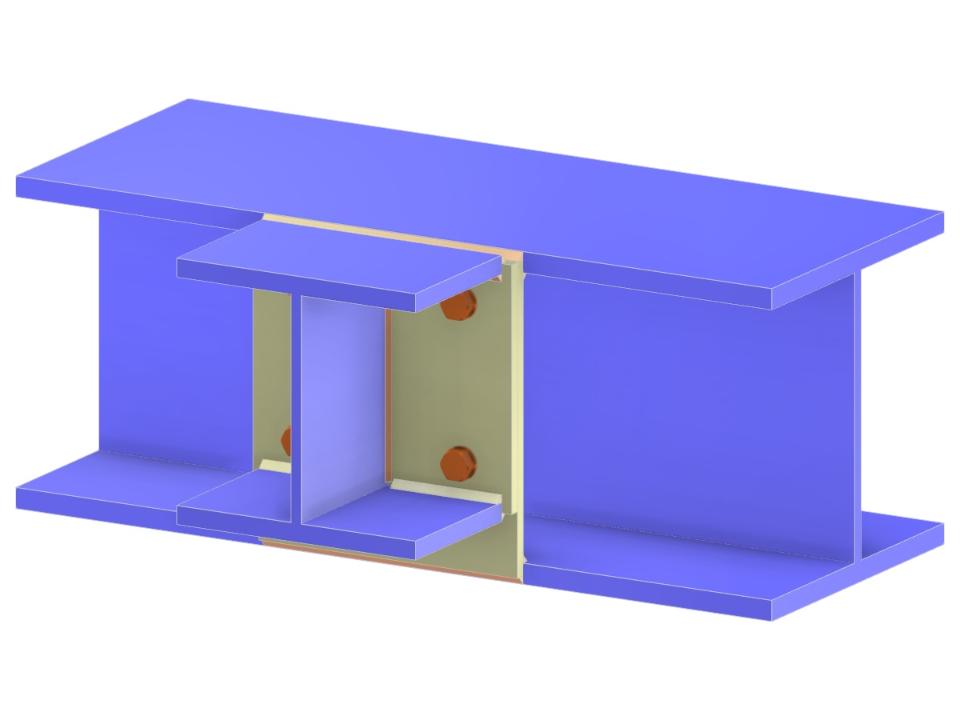

This model illustrates a beam-to-beam connection using a full depth end plate-to-plate interface, secured with bolts and featuring a fixed beam configuration. This type of connection is often implemented in steel structures to ensure rigidity and reliable load transfer between connected beams. The design focuses on the robust application of end plates, ensuring stability and adherence to engineering safety standards.
Beam to Beam Connection with Full Depth End Plate
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.111 tons |
| Dimensions (Metric) | 0,760 x 0,000 x 0,320 m |
| Dimensions (Imperial) | 2.49 x 0 x 1.05 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
