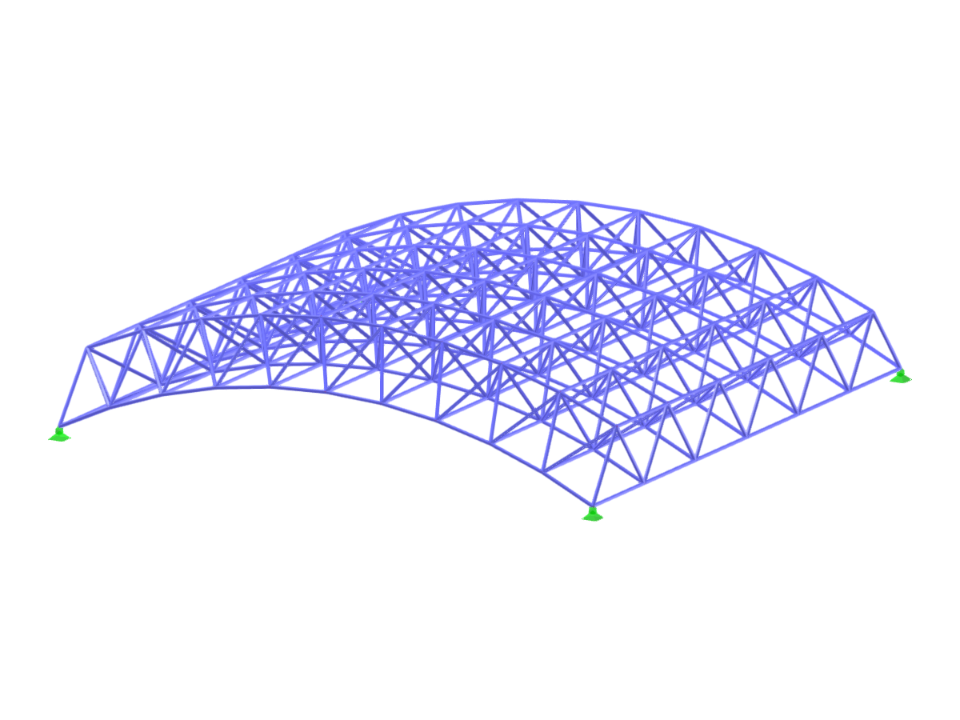

This model features a curved two-layered space truss designed for wide-span roof enclosures. It is based on a semi-octahedral structure and has a circular cylindrical shape, ideal for architectural applications requiring both aesthetics and structural stability.
Curved Space Truss for Wide-Span Roofs
| Block parameters editable dynamically | |
| Number of Nodes | 137 |
| Number of Lines | 480 |
| Number of Members | 480 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 4.438 tons |
| Dimensions (Metric) | 12.000 x 2.683 x 12.000 m |
| Dimensions (Imperial) | 39.37 x 8.8 x 39.37 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
