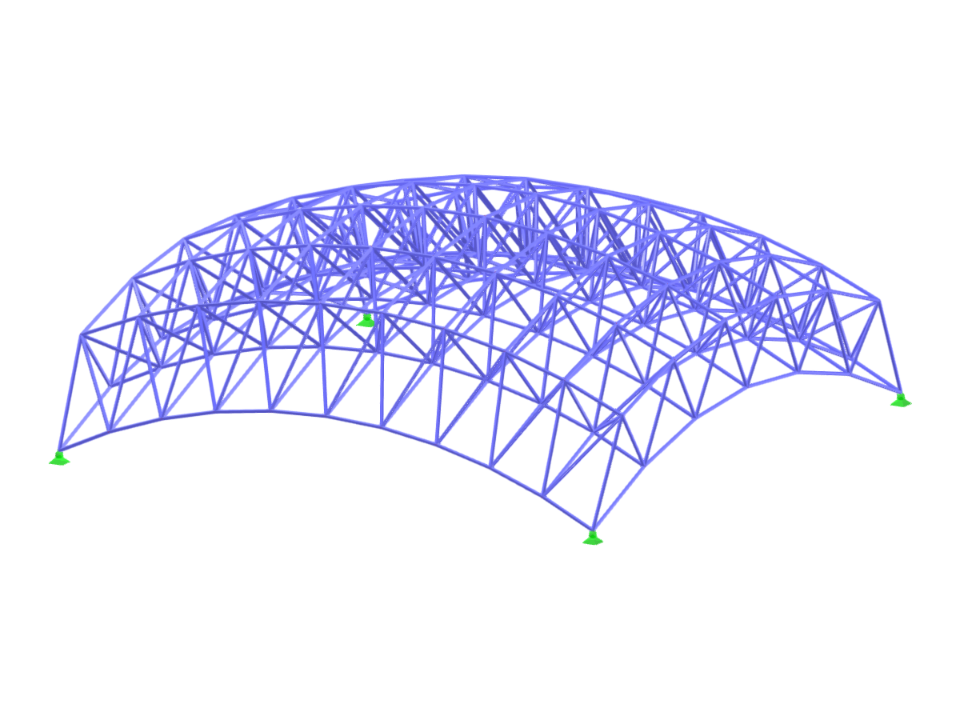

This model features two curved two-layered space trusses designed to cover wide-span roof enclosures. The structure is based on a semi-octahedral shape, forming a circular cylindrical configuration. These trusses provide an aesthetically pleasing and functional solution for large roof spans.
Two Curved Space Truss Roof Enclosure
| Block parameters editable dynamically | |
| Number of Nodes | 137 |
| Number of Lines | 480 |
| Number of Members | 480 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 4.846 tons |
| Dimensions (Metric) | 12.164 x 4.441 x 12.000 m |
| Dimensions (Imperial) | 39.91 x 14.57 x 39.37 feet |
