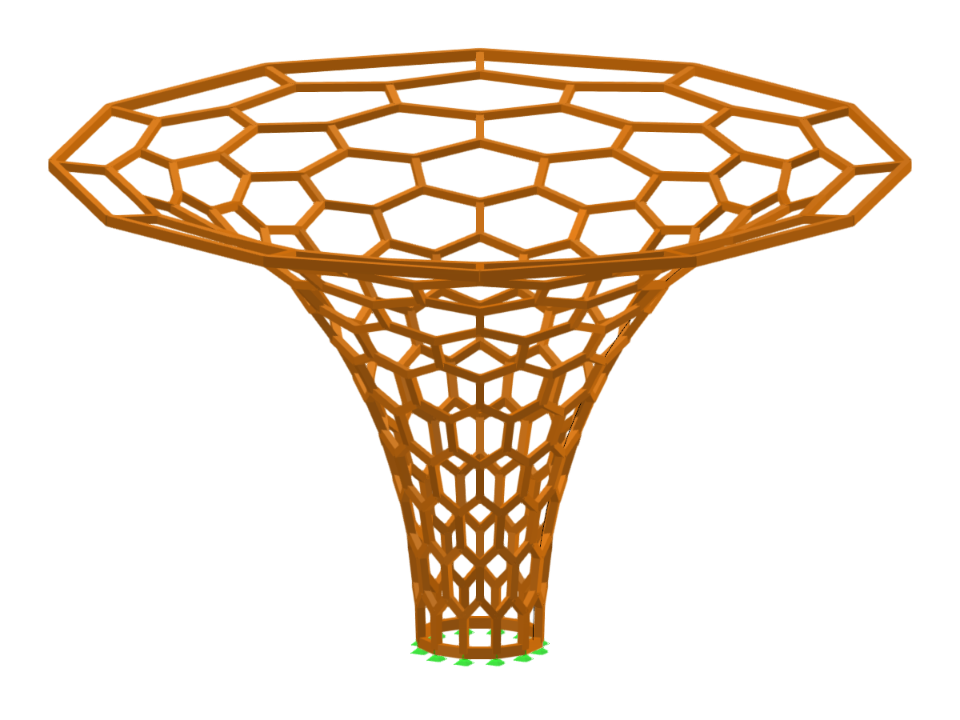

This model showcases an intricate timber gridshell structure, highlighting the architectural and structural capabilities of modern timber construction. The design demonstrates advanced curvature and load distribution techniques, providing insights into the effective use of timber in large-span structures. Developed using Dlubal software, the model exemplifies innovative engineering solutions for sustainable building practices. Suitable for architects and engineers exploring the potentials of timber in contemporary design.
Timber Gridshell Structure
| Block parameters editable dynamically | |
| Number of Nodes | 289 |
| Number of Lines | 433 |
| Number of Members | 432 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 2.753 tons |
| Dimensions (Metric) | 14.000 x 8.000 x 14.000 m |
| Dimensions (Imperial) | 45.93 x 26.25 x 45.93 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
