This model showcases a timber gridshell structure, demonstrating advanced engineering and architectural design. Gridshell structures are characterized by their lightweight, efficient load distribution and aesthetic appeal, often incorporating a lattice framework. They are formed by assembling a grid of timber laths that gain strength and stability through their curved geometry. Such structures are commonly used for open spaces and large spans, providing an innovative solution in sustainable architecture.

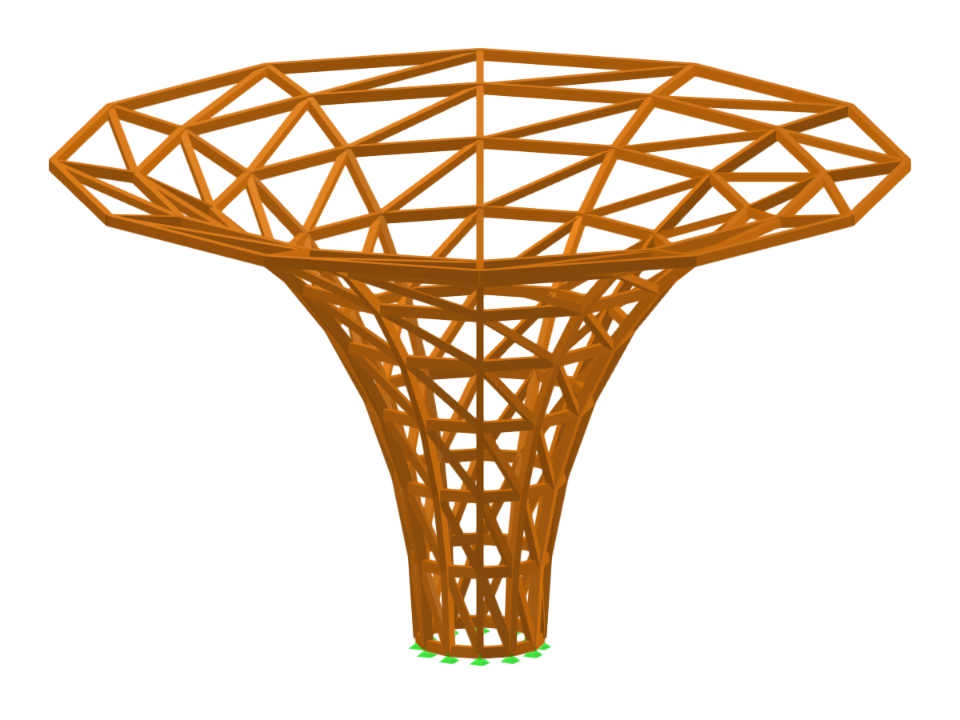

Timber Gridshell Structure
| Block parameters editable dynamically | |
| Number of Nodes | 108 |
| Number of Lines | 301 |
| Number of Members | 300 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 4.806 tons |
| Dimensions (Metric) | 14.000 x 8.000 x 14.000 m |
| Dimensions (Imperial) | 45.93 x 26.25 x 45.93 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
