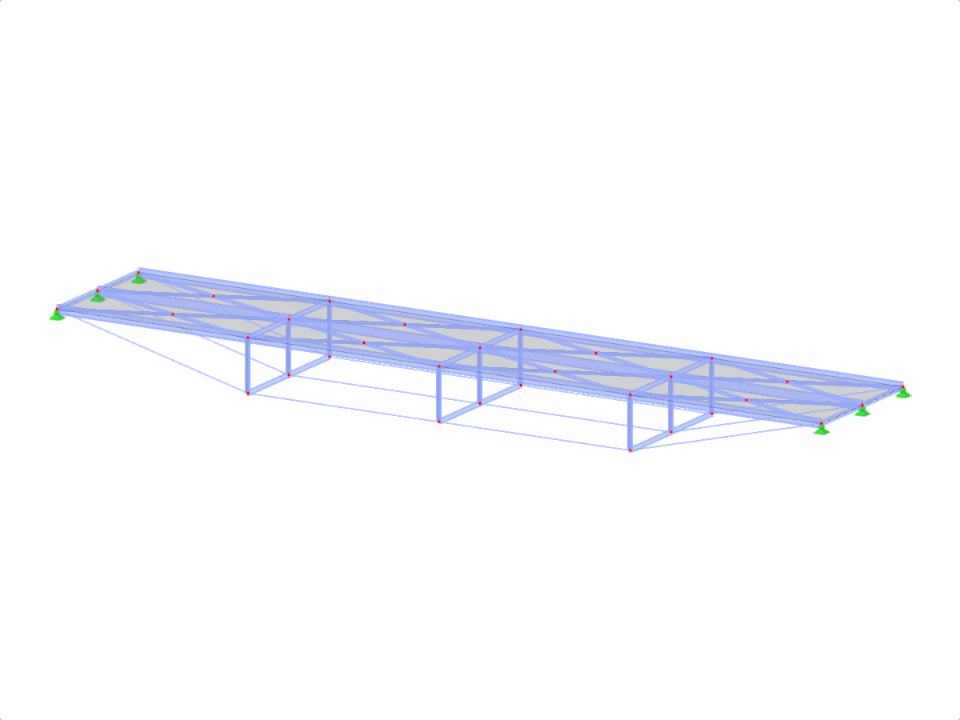

The model represents an under-slung cable-stayed girder bridge, showcasing advanced structural engineering principles. This type of bridge design features cables positioned below the main structure, providing stability and an aesthetic appeal. It demonstrates the efficient distribution of forces and the use of modern materials. Such bridges are typically used for spanning wide distances with minimal piers. Ideal for engineers looking to study innovative solutions in bridge construction.
Under-Slung Cable-Stayed Bridge
| Block parameters editable dynamically | |
| Number of Nodes | 32 |
| Number of Lines | 85 |
| Number of Members | 81 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 6 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 48.777 tons |
| Dimensions (Metric) | 20.000 x 1.300 x 3.700 m |
| Dimensions (Imperial) | 65.62 x 4.27 x 12.14 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
