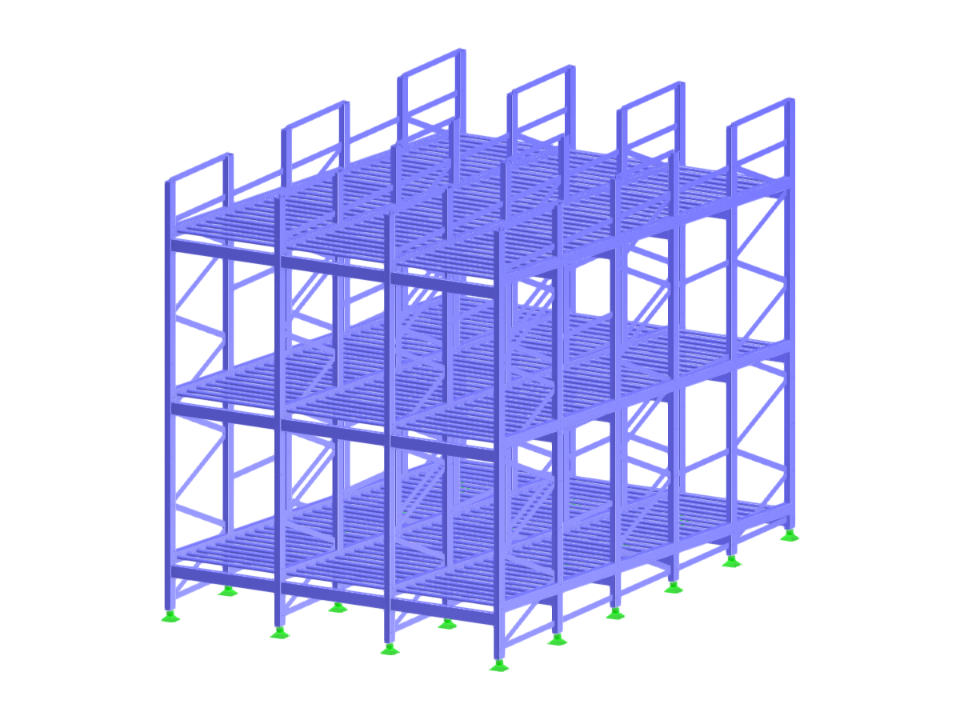

This model showcases an inclined steel rack structure optimized for a pallet racking system. The structural integrity and design considerations suit various warehouse storage needs, efficiently utilizing space and ensuring reliability. Advanced engineering techniques applied in this model offer insights into efficient racking solutions.
Steel Rack Structure for Pallet System
| Block parameters editable dynamically | |
| Number of Nodes | 696 |
| Number of Lines | 796 |
| Number of Members | 796 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 4.820 tons |
| Dimensions (Metric) | 3.600 x 4.200 x 5.500 m |
| Dimensions (Imperial) | 11.81 x 13.78 x 18.04 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
