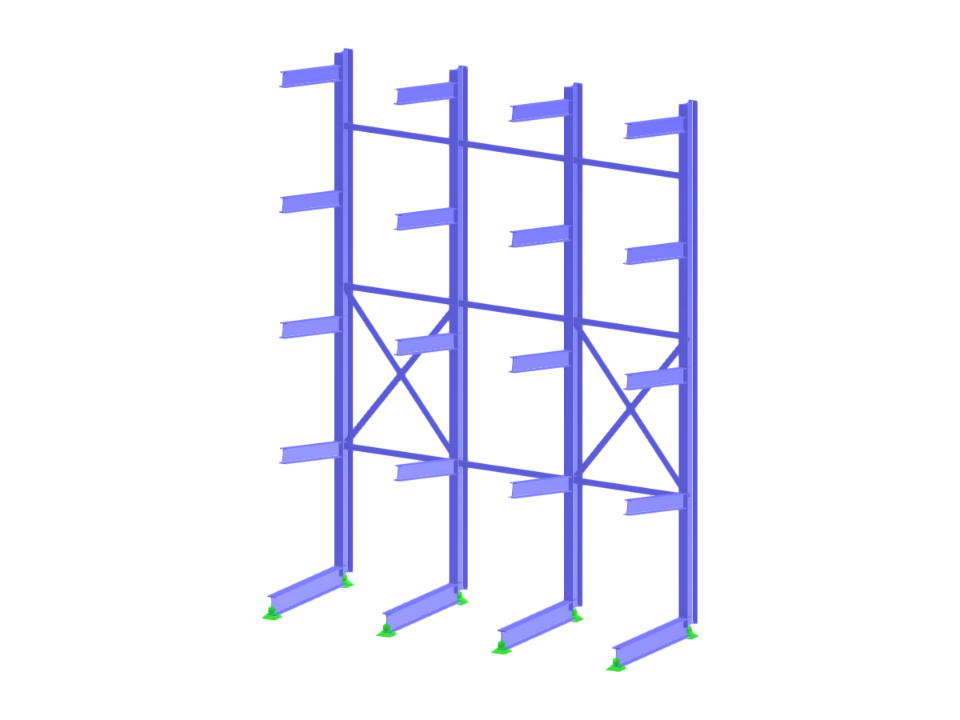

This model represents a single-sided cantilever used as part of a warehouse storage rack frame. It highlights the structural design necessary for supporting stored items effectively while optimizing space in a warehouse environment. The cantilever design allows for materials to be stored without obstructing floor area, maximizing storage potential. Ideal for spaces demanding efficient load-bearing solutions.
Warehouse Storage Rack Frame Single-Sided Cantilever
| Block parameters editable dynamically | |
| Number of Nodes | 56 |
| Number of Lines | 49 |
| Number of Members | 49 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.731 tons |
| Dimensions (Metric) | 3.600 x 4.900 x 1.300 m |
| Dimensions (Imperial) | 11.81 x 16.08 x 4.27 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
