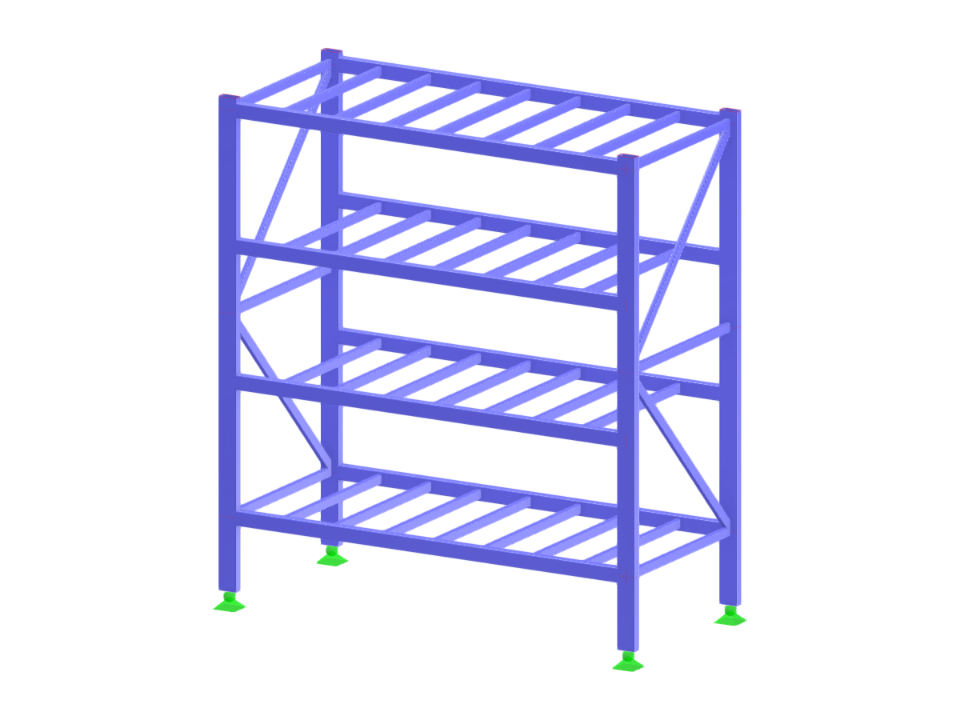

This model presents a steel rack storage system designed for efficient space management and load distribution. Steel racks are used widely in warehouses for storing goods, providing an organized framework and ensuring stability under load conditions. The model uses precise engineering calculations for optimal rack design. It may be beneficial for engineers seeking examples of industrial storage solutions.
Steel Rack Storage Structure
| Block parameters editable dynamically | |
| Number of Nodes | 84 |
| Number of Lines | 62 |
| Number of Members | 62 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.165 tons |
| Dimensions (Metric) | 1.800 x 2.000 x 0.800 m |
| Dimensions (Imperial) | 5.91 x 6.56 x 2.62 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
