This model represents a steel shelter, emphasizing efficient structural integrity and load-bearing capabilities. The construction design utilizes modern engineering principles to ensure durability and weather resistance. The structural model is suitable for understanding the interaction between steel components under various loading conditions typical for temporary and semi-permanent structures. It's a practical example for civil engineers looking to explore steel design applications.

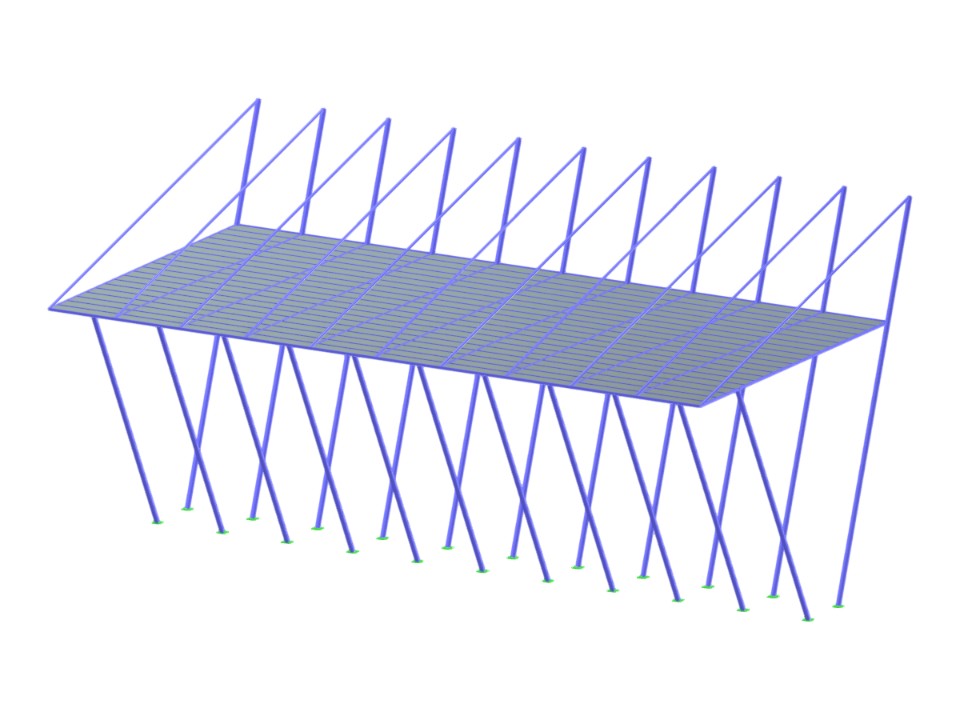

Steel Shelter Structure
| Block parameters editable dynamically | |
| Number of Nodes | 264 |
| Number of Lines | 276 |
| Number of Members | 276 |
| Number of Surfaces | 10 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 317.672 tons |
| Dimensions (Metric) | 100.000 x 52.000 x 55.846 m |
| Dimensions (Imperial) | 328.08 x 170.6 x 183.22 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
