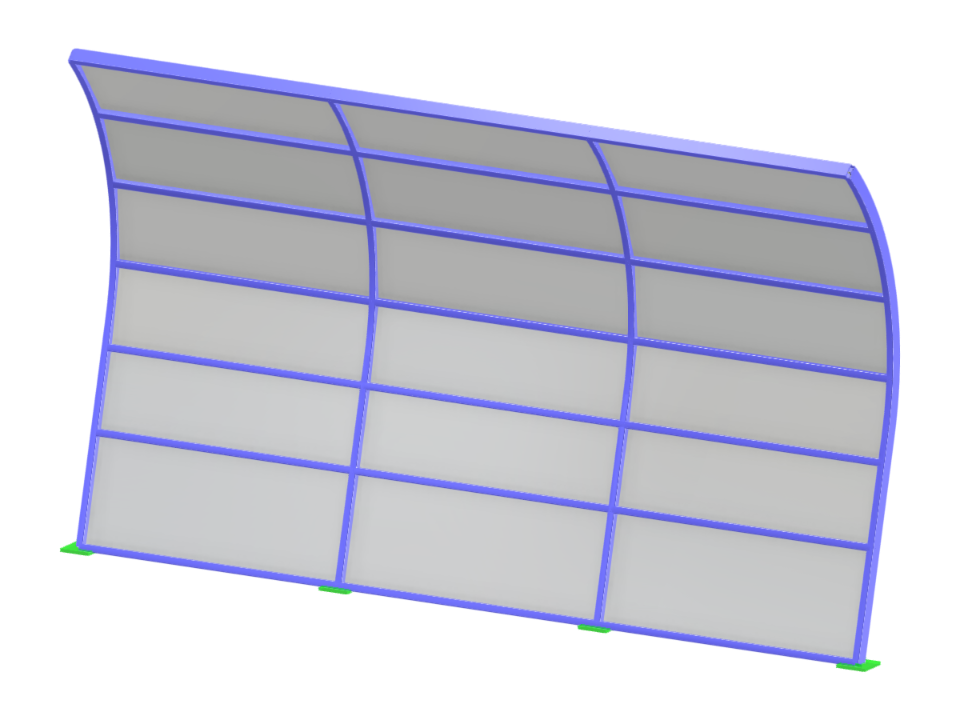

This model represents a noise and wind barrier, designed to mitigate environmental impacts from noise and wind. Such barriers are essential in urban planning and highway engineering to enhance environmental quality. Typically made of materials with high acoustic absorption and aerodynamic efficiency, they serve critical roles in protecting residential areas and roadways. The design reflects the integration of structural stability and functional effectiveness. Noise and wind barriers can vary in height and material based on specific site requirements.
Noise and Wind Barrier
| Block parameters editable dynamically | |
| Number of Nodes | 32 |
| Number of Lines | 53 |
| Number of Members | 37 |
| Number of Surfaces | 18 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 21.346 tons |
| Dimensions (Metric) | 12.000 x 6.862 x 1.175 m |
| Dimensions (Imperial) | 39.37 x 22.51 x 3.85 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
