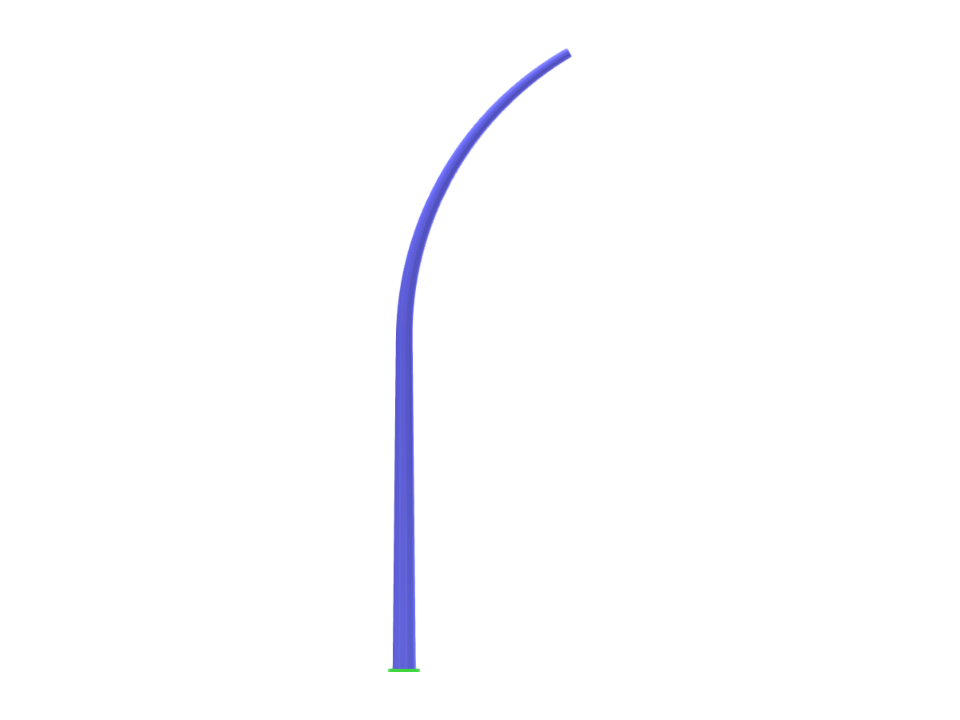

This model features a single post designed as a wind barrier with a parametric arc curve at the top. The arc is customizable to suit different aerodynamic needs, demonstrating flexibility and innovation in wind-resistant structures. This showcases the efficient application of structural design principles in a real-world scenario.
Single Post With Parametric Arc Curve
| Block parameters editable dynamically | |
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.044 tons |
| Dimensions (Metric) | 3.000 x 11.196 x 0.000 m |
| Dimensions (Imperial) | 9.84 x 36.73 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
