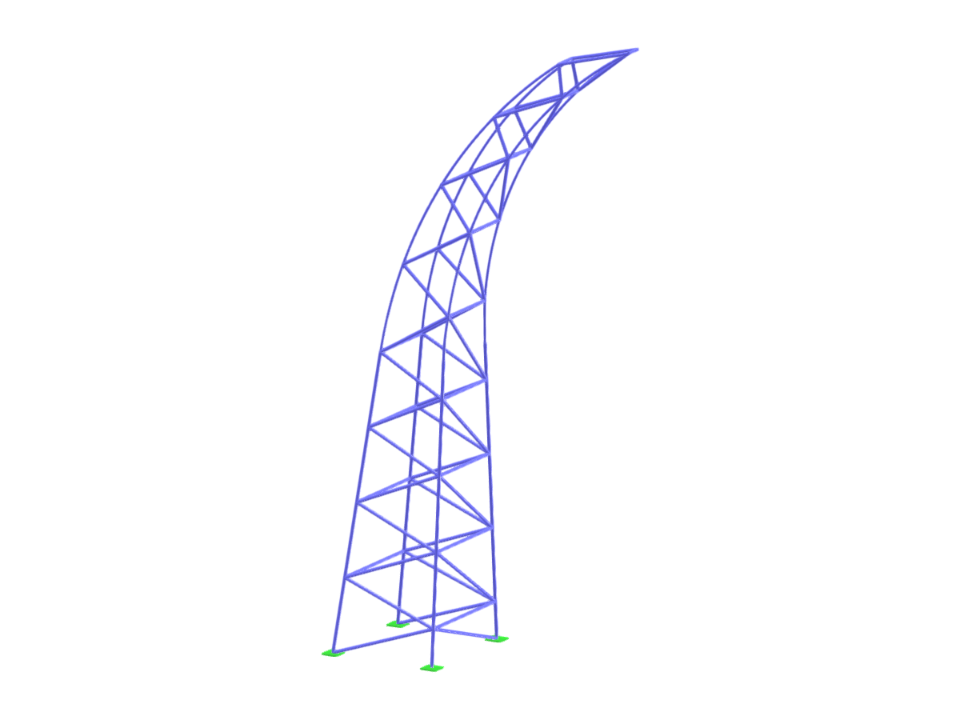

This model represents a rectangular truss column featuring a distinctive curve at the top. It demonstrates the structural behavior of a column under load with a unique geometric modification, showcasing the impact of curvature on stability and load distribution.
Rectangular Truss Column with Top Curve
| Block parameters editable dynamically | |
| Number of Nodes | 58 |
| Number of Lines | 96 |
| Number of Members | 96 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 3.679 tons |
| Dimensions (Metric) | 11.900 x 24.990 x 5.000 m |
| Dimensions (Imperial) | 39.04 x 81.99 x 16.4 feet |
