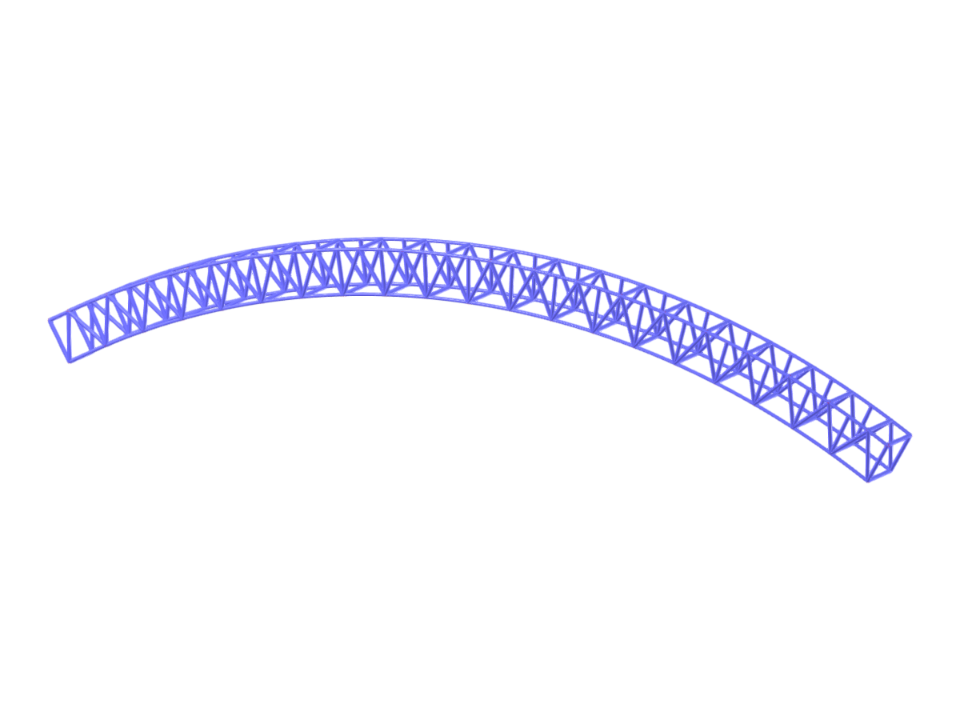

This model represents a three-dimensional curved rectangular truss designed for analysis using RFEM. The truss structure is geometrically defined by its curved design, providing insights into complex load distribution and stability analysis. This type of truss is commonly used in architecture and construction for aesthetic and functional purposes.
3D Curved Rectangular Truss
| Block parameters editable dynamically | |
| Number of Nodes | 244 |
| Number of Lines | 285 |
| Number of Members | 285 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.506 tons |
| Dimensions (Metric) | 21.000 x 3.679 x 1.000 m |
| Dimensions (Imperial) | 68.9 x 12.07 x 3.28 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
