This model represents an F-shaped wall configuration with a variable number of stories. The design accommodates changes in vertical load distributions, making it suitable for diverse architectural applications. Adaptable to different structural needs, it provides flexibility in high-rise building design.

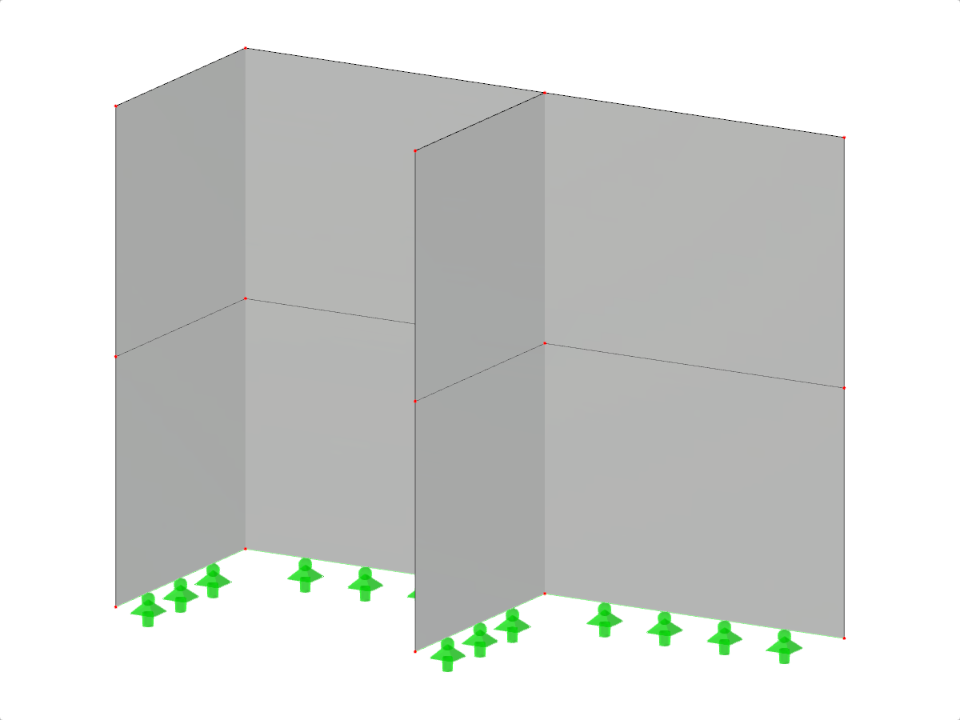

F-Shaped Wall Stacks with Variable number of stories
| Block parameters editable dynamically | |
| Number of Nodes | 15 |
| Number of Lines | 22 |
| Number of Members | 0 |
| Number of Surfaces | 8 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 42.000 tons |
| Dimensions (Metric) | 8.000 x 6.000 x 3.000 m |
| Dimensions (Imperial) | 26.25 x 19.69 x 9.84 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
