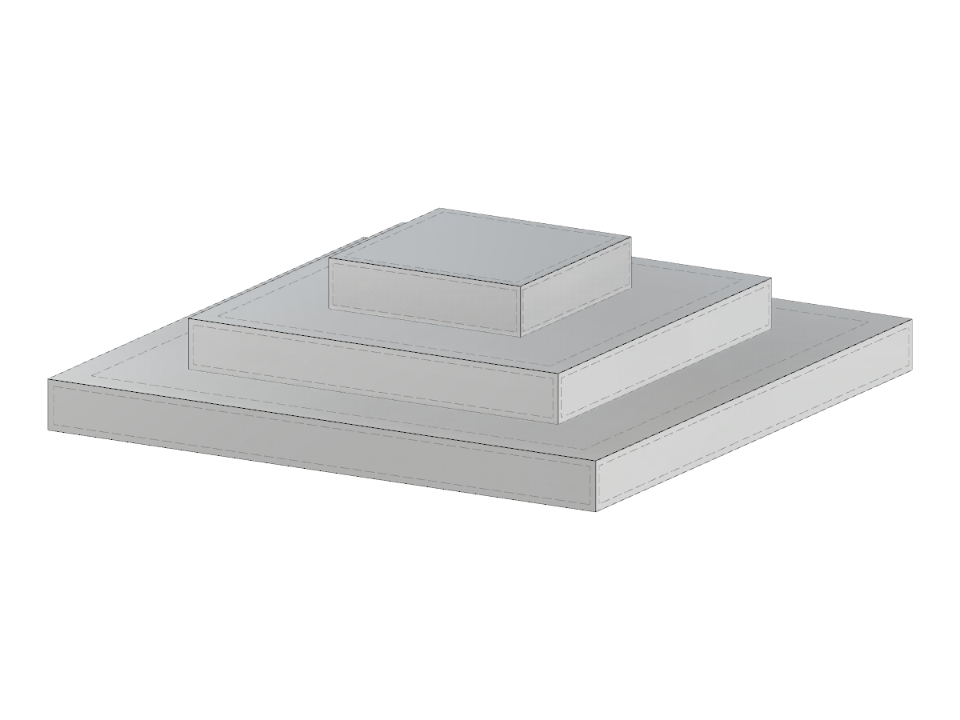

This model showcases a stepped footing foundation, emphasizing the structural design criteria essential for stability and performance. It serves as an example of footing foundation engineering principles, ideal for educational purposes or project demonstrations.
Stepped Footing Foundation
| Block parameters editable dynamically | |
| Number of Nodes | 24 |
| Number of Lines | 36 |
| Number of Members | 0 |
| Number of Surfaces | 18 |
| Number of Solids | 3 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 2.630 tons |
| Dimensions (Metric) | 2.000 x 0.500 x 2.000 m |
| Dimensions (Imperial) | 6.56 x 1.64 x 6.56 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
