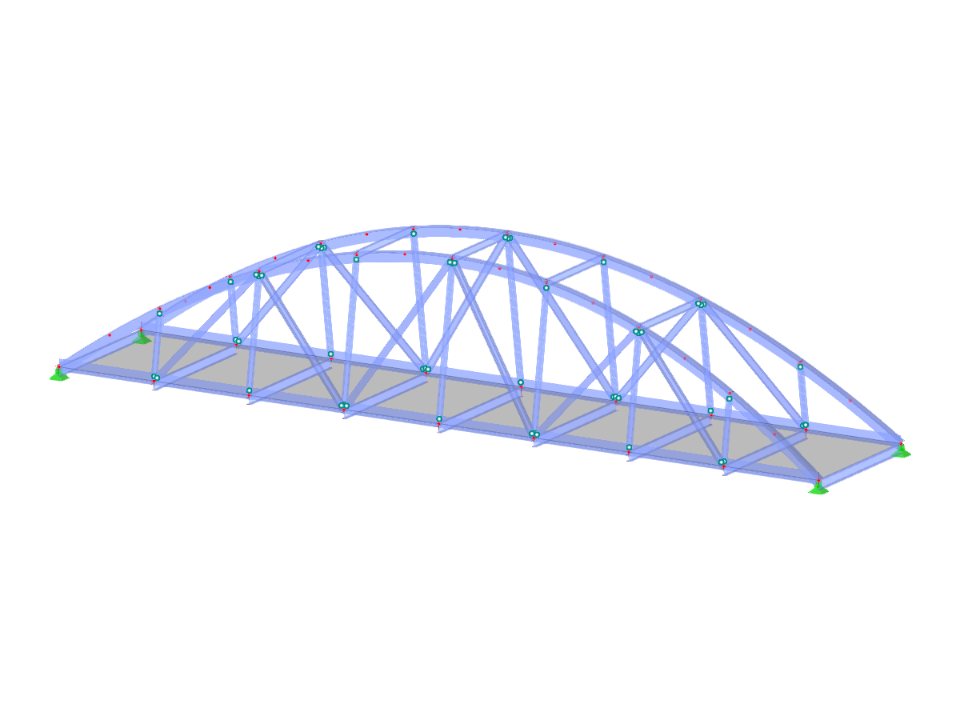

This model describes a basket-handle through-truss bridge featuring inward-inclined side trusses and parabolic top chords. The design highlights the structural elegance and engineering efficiency found in truss bridge designs with elements tilted for both aesthetic appeal and functional performance. It illustrates advanced load-bearing techniques and exemplifies balance between design and engineering in bridge construction.
Basket-Handle Truss Bridge Design
| Block parameters editable dynamically | |
| Number of Nodes | 48 |
| Number of Lines | 74 |
| Number of Members | 72 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 6 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 21.858 tons |
| Dimensions (Metric) | 16.000 x 3.000 x 3.000 m |
| Dimensions (Imperial) | 52.49 x 9.84 x 9.84 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
