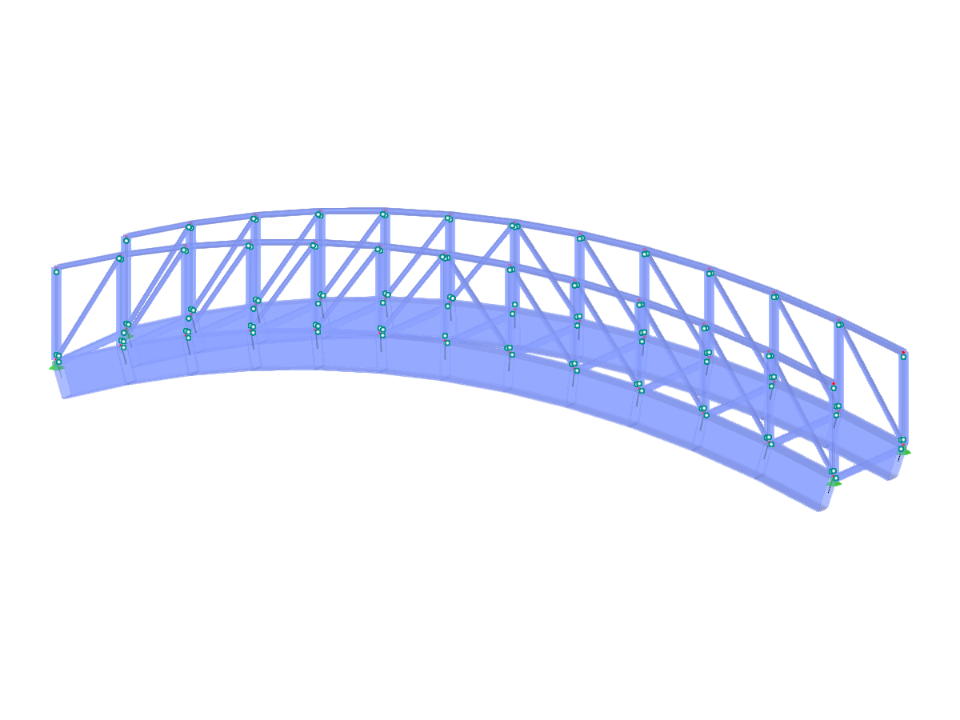

This model features a truss arch curve bridge designed using member elements serving as the deck in RSTAB. The bridge model exemplifies efficient structural analysis applicable to arch-type trusses, demonstrating how member components can be employed effectively within a curve geometry.
Truss Arch Bridge With Member Deck
| Block parameters editable dynamically | |
| Number of Nodes | 52 |
| Number of Lines | 111 |
| Number of Members | 111 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 22.056 tons |
| Dimensions (Metric) | 18.000 x 3.400 x 2.800 m |
| Dimensions (Imperial) | 59.06 x 11.15 x 9.19 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
