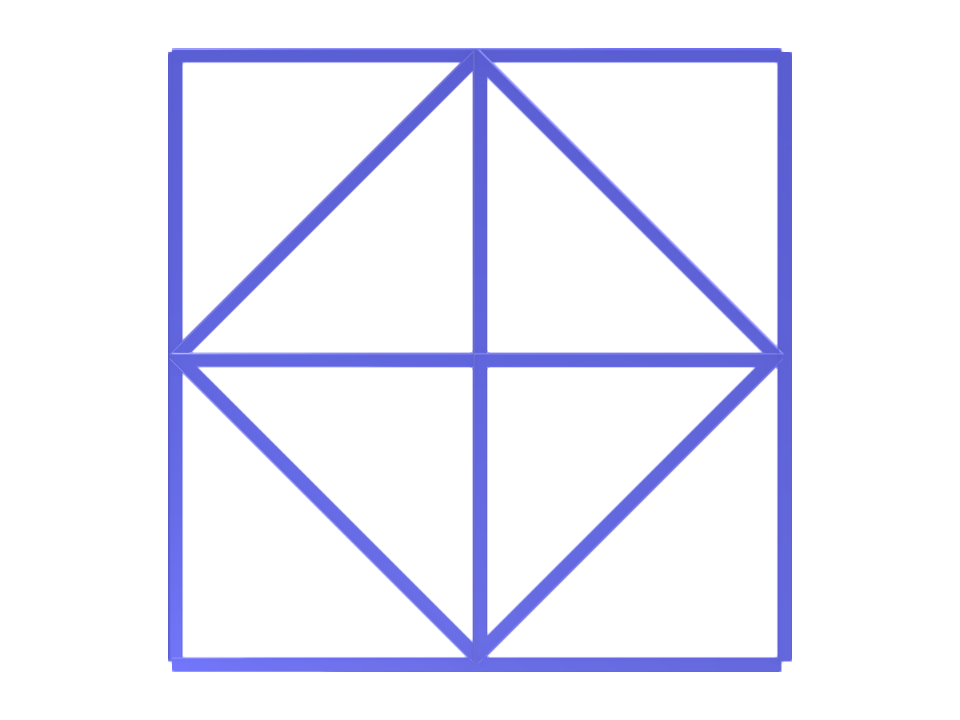

This model demonstrates the parametric design of horizontal bracing systems used in masts and towers. Utilizing Dlubal's capabilities, it highlights structural optimization and efficiency in supporting tall constructions subjected to various loads. Emphasis is placed on parametric modeling which facilitates adaptable and robust solutions for dynamic engineering scenarios. Essential for engineers engaged in telecommunications, broadcast towers, and similar infrastructural projects.
Parametric Horizontal Bracing Design for Masts and Towers
| Block parameters editable dynamically | |
| Number of Nodes | 9 |
| Number of Lines | 16 |
| Number of Members | 16 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.648 tons |
| Dimensions (Metric) | 5.000 x 0.000 x 5.000 m |
| Dimensions (Imperial) | 16.4 x 0 x 16.4 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
