This model represents a concrete water tank designed for analysis and simulation. The structure includes detailed geometrical and material specifications suitable for engineering assessment. It provides an example of how such infrastructure can be modeled using engineering software for stability and safety evaluations.

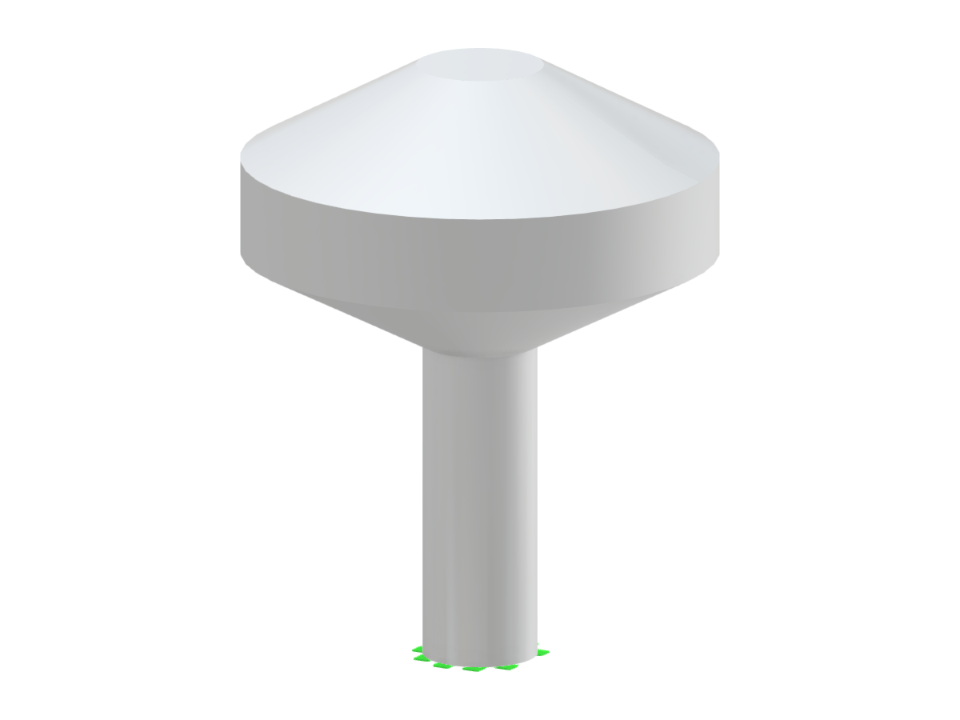

Concrete Water Tank
| Block parameters editable dynamically | |
| Number of Nodes | 6 |
| Number of Lines | 11 |
| Number of Members | 0 |
| Number of Surfaces | 5 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 40.138 tons |
| Dimensions (Metric) | 7.500 x 9.500 x 7.500 m |
| Dimensions (Imperial) | 24.61 x 31.17 x 24.61 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
