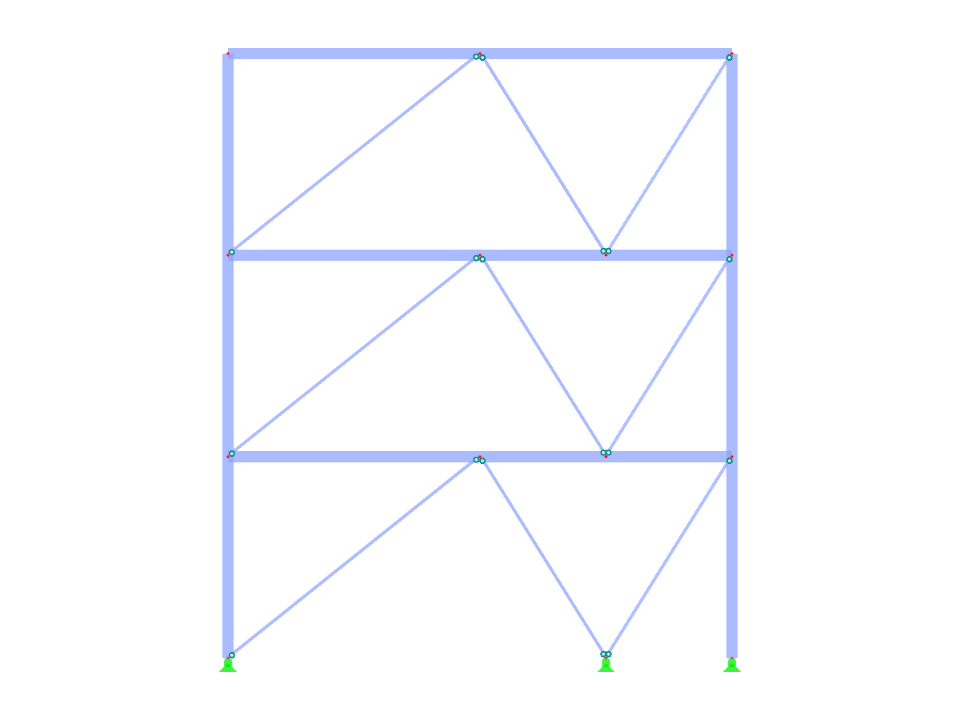

This model showcases a steel structure bracing system designed for varying numbers of floors and heights. The flexibility of this design allows it to be adapted for different building configurations, making it a versatile choice for engineers. The system enhances the stability and load distribution capacities of steel frameworks.
Steel Structure Bracing System
| Block parameters editable dynamically | |
| Number of Nodes | 14 |
| Number of Lines | 23 |
| Number of Members | 23 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.546 tons |
| Dimensions (Metric) | 10,000 x 12,000 x 0,000 m |
| Dimensions (Imperial) | 32.81 x 39.37 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
