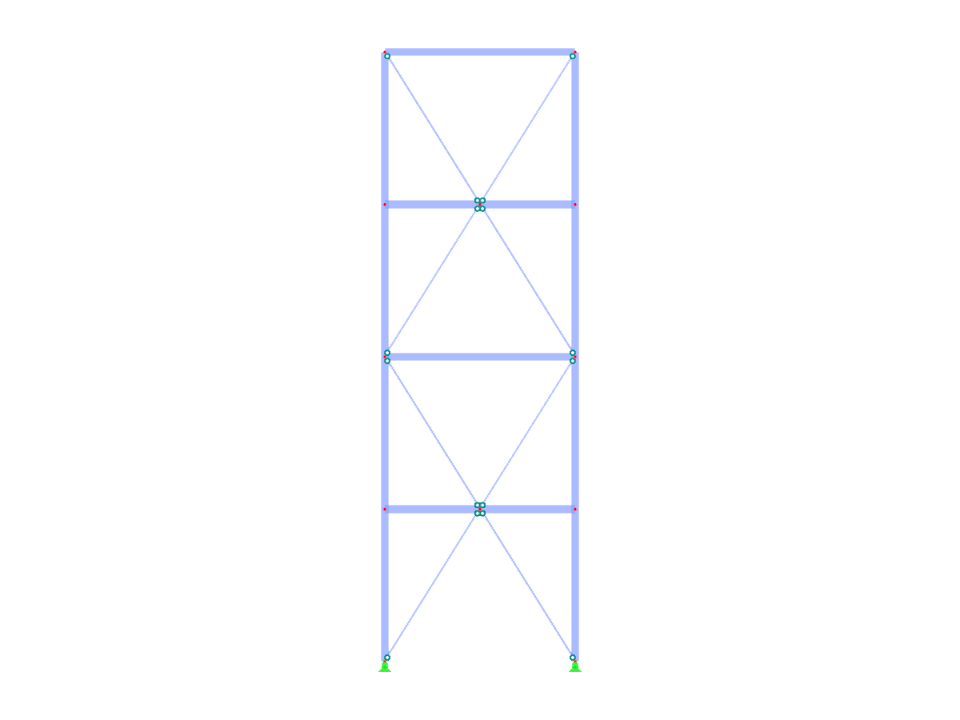

This model demonstrates an efficient two-story X-bracing system for steel structures. It highlights the optimal distribution and design of bracing elements to ensure structural stability and load resistance. Typically used in multistory buildings, X-bracing enhances stiffness and controls lateral movements effectively.
Two-Story Steel X-Bracing
| Block parameters editable dynamically | |
| Number of Nodes | 12 |
| Number of Lines | 22 |
| Number of Members | 22 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.467 tons |
| Dimensions (Metric) | 5.000 x 16.000 x 0.000 m |
| Dimensions (Imperial) | 16.4 x 52.49 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
