This model features a curved solid with a variable radius and degree. Suitable for studying complex geometrical properties and stress distribution in engineering applications, this model assists in understanding the effects of curvature on structural behavior, particularly in non-linear analysis scenarios. It is ideal for advanced simulation needs using FEM analysis.

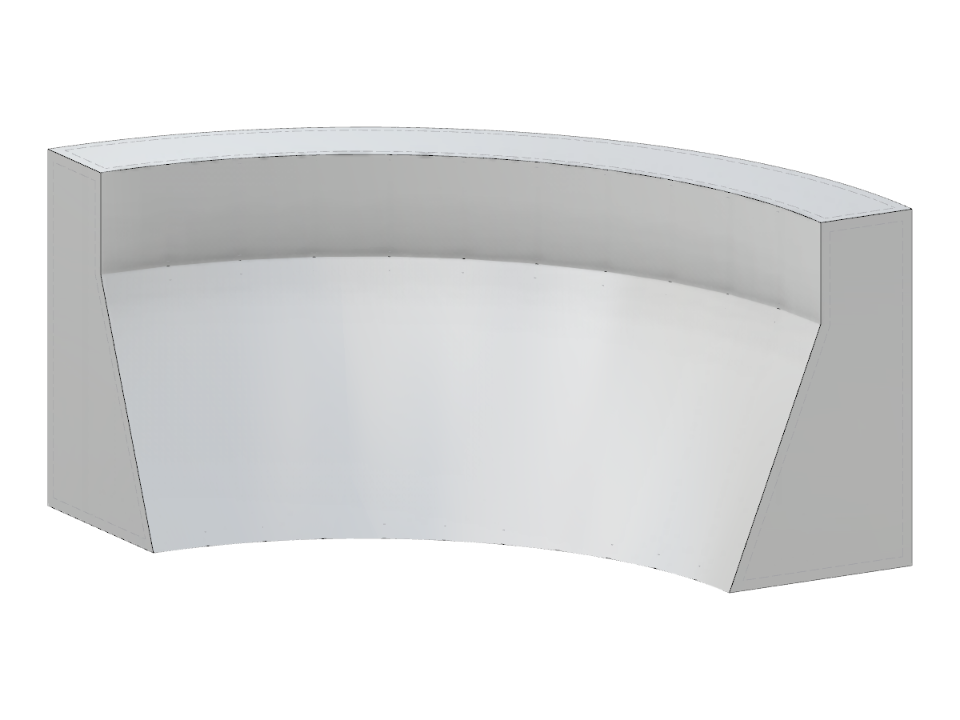

Curved Solid with Variable Radius and Degree
| Block parameters editable dynamically | |
| Number of Nodes | 10 |
| Number of Lines | 15 |
| Number of Members | 0 |
| Number of Surfaces | 7 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 788.013 tons |
| Dimensions (Metric) | 16.392 x 7.000 x 8.000 m |
| Dimensions (Imperial) | 53.78 x 22.97 x 26.25 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
