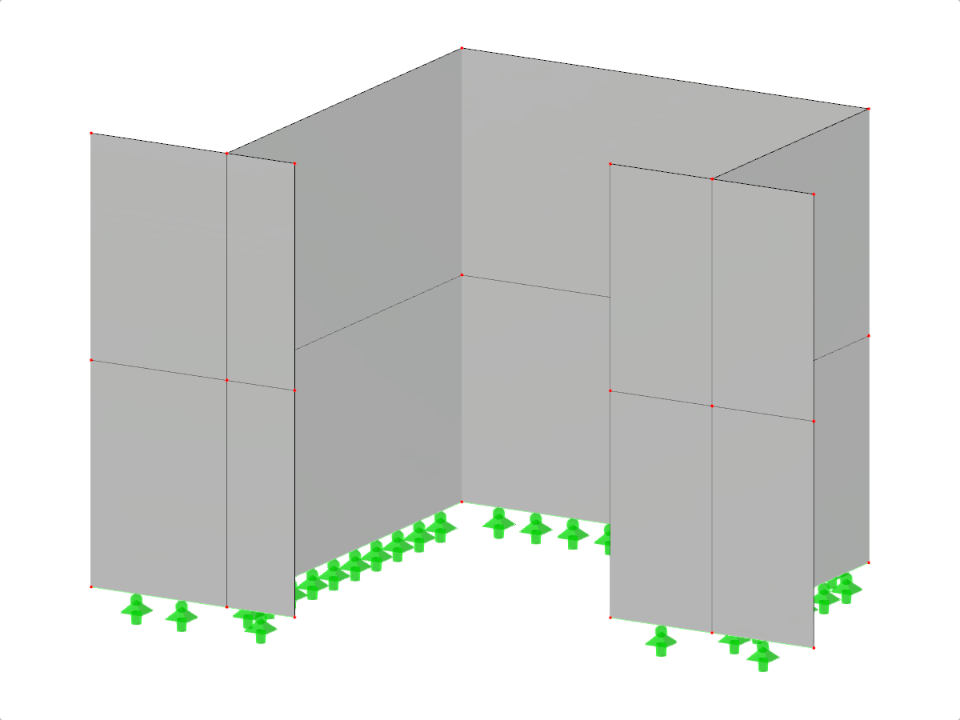

This model features a C-shaped wall with lips, allowing for variable numbers of stories. It is designed to demonstrate structural behavior changes with different configurations. Ideal for analyzing stability and load distribution, the model serves as an educational tool for understanding complex wall geometries.
C-Shaped Wall Stacks With Lips and Variable Stories
| Block parameters editable dynamically | |
| Number of Nodes | 24 |
| Number of Lines | 37 |
| Number of Members | 0 |
| Number of Surfaces | 14 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 66.000 tons |
| Dimensions (Metric) | 9.500 x 6.000 x 6.000 m |
| Dimensions (Imperial) | 31.17 x 19.69 x 19.69 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
