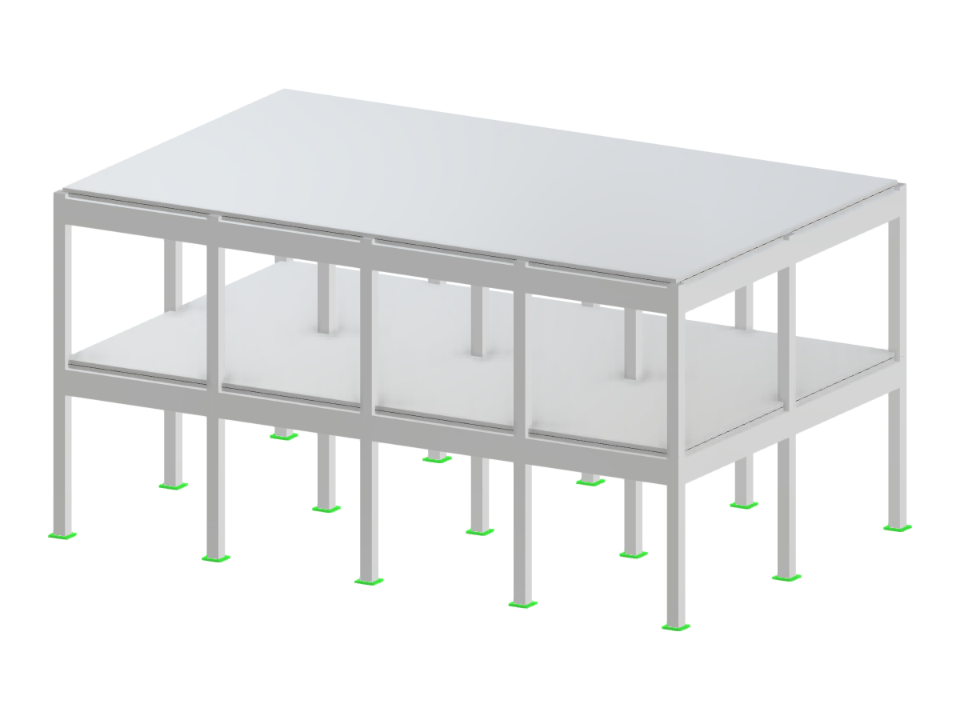

This model represents a concrete building with a rectangular layout. It features a variable number of bays in both the X and Y directions and allows for a customizable number of floors. This setup is ideal for analyzing structural variations and architectural designs in multistory concrete buildings.
Concrete Building with Variable Bays and Floors
| Block parameters editable dynamically | |
| Number of Nodes | 45 |
| Number of Lines | 82 |
| Number of Members | 74 |
| Number of Surfaces | 2 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 275.200 tons |
| Dimensions (Metric) | 16,000 x 8,000 x 10,000 m |
| Dimensions (Imperial) | 52.49 x 26.25 x 32.81 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
