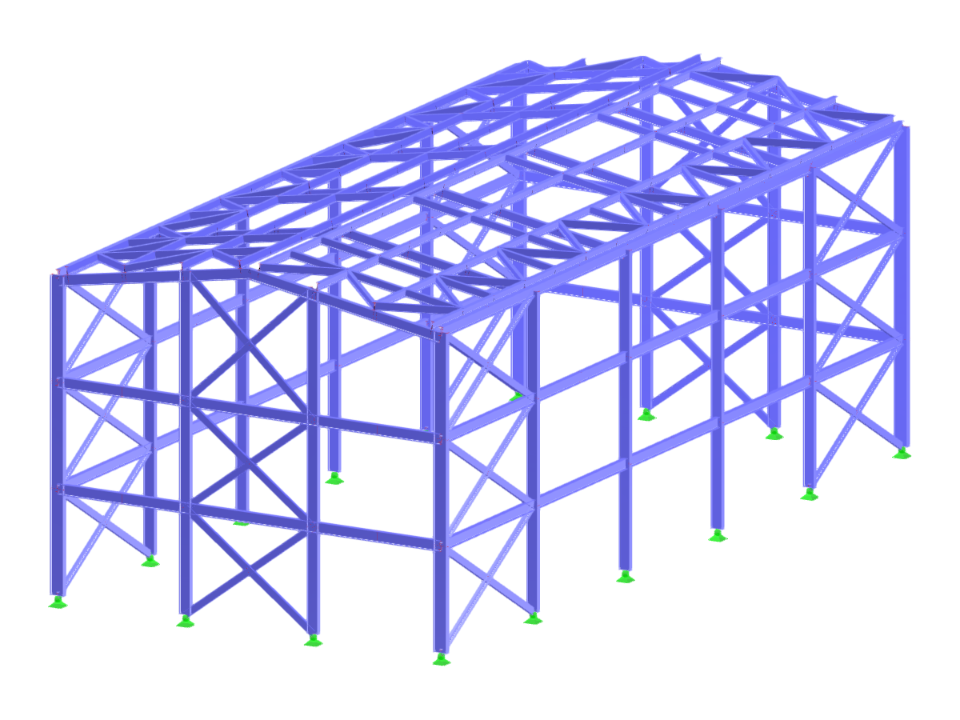

This model represents a detailed analysis of a multistory frame structure. Designed for structural assessment, it aids in understanding load distribution across levels. The model is useful for engineers working with complex structures, allowing visualization and simulation of real-world conditions. It can be utilized for educational purposes as well as practical applications in construction design.
Multistory Frame Structure
| Block parameters editable dynamically | |
| Number of Nodes | 278 |
| Number of Lines | 494 |
| Number of Members | 494 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 32.951 tons |
| Dimensions (Metric) | 12.000 x 10.000 x 25.000 m |
| Dimensions (Imperial) | 39.37 x 32.81 x 82.02 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
