This model showcases an inclined continuous beam with a parametric number of spans and overhanging ends. The structure's inherent flexibility allows engineers to explore various span configurations and support arrangements, facilitating an efficient design process. The model demonstrates the application of continuous beams in scenarios requiring adjustable slopes, catering to diverse architectural and structural innovations.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

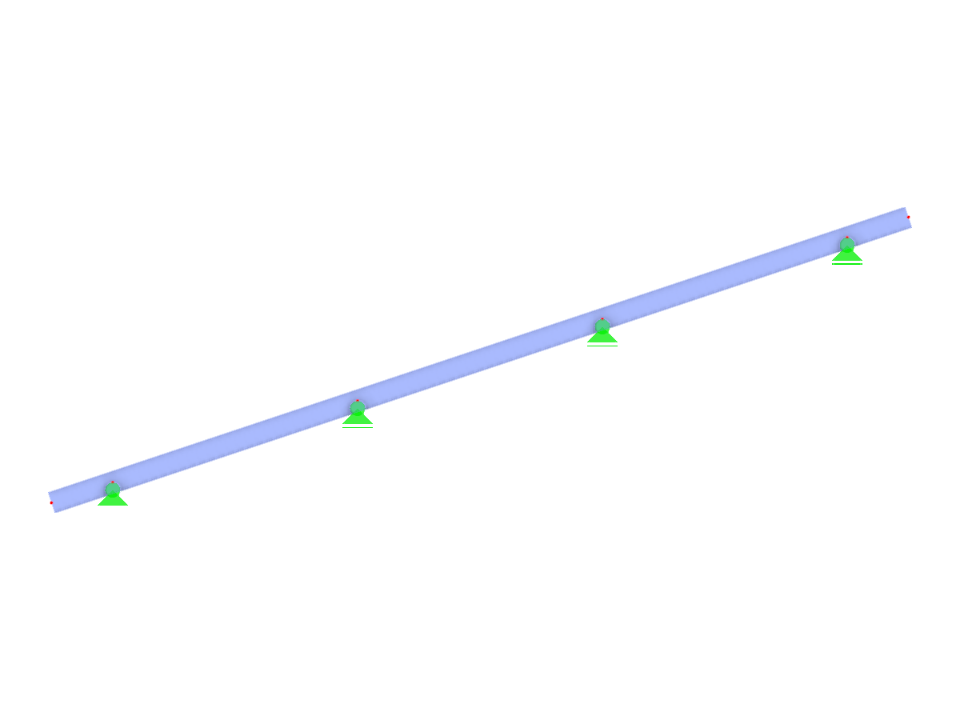

Inclined Continuous Beam with Multiple Spans and Overhangs

Block parameters editable dynamically
Number of Nodes 6
Number of Lines 5
Number of Members 5
Number of Surfaces 0
Number of Solids 0
Number of Load Cases 7
Number of Load Combinations 0
Number of Result Combinations 0
Total Weight 0.138 tons
Dimensions (Metric) 7.000 x 2.333 x 0.000 m
Dimensions (Imperial) 22.97 x 7.65 x 0 feet

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
