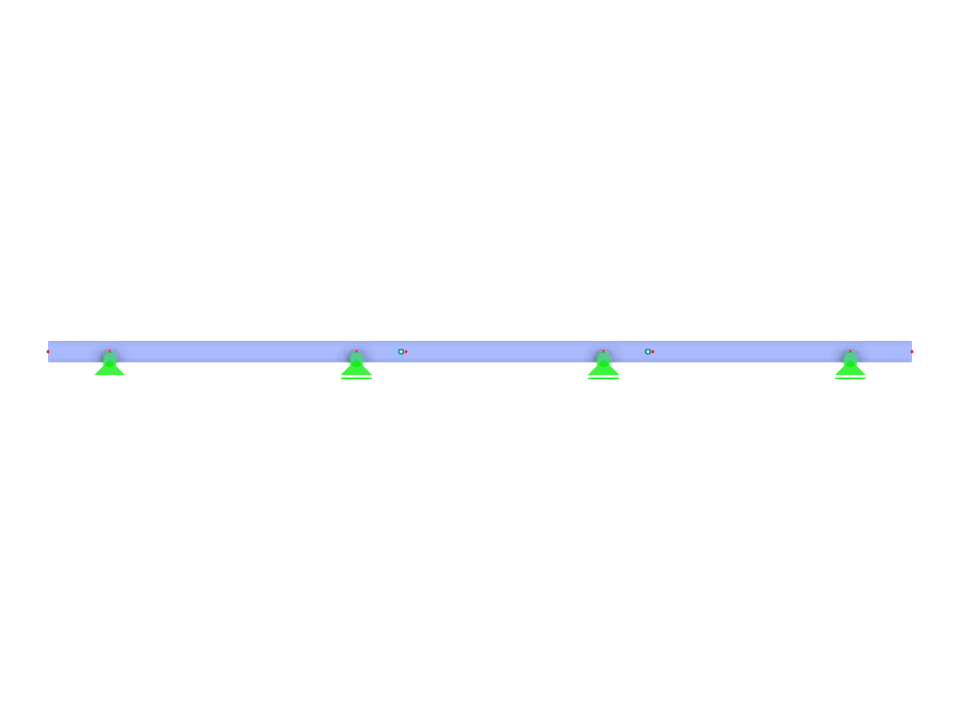

This model features a continuous Gerber beam design with strategically placed hinges. The first bay of the beam is constructed without a hinge, while all subsequent bays are equipped with one hinge each. This model also includes overhanging ends, providing insight into the load distribution and articulation effects of such structures.
Gerber Beam Model with Hinges and Overhangs
| Block parameters editable dynamically | |
| Number of Nodes | 8 |
| Number of Lines | 7 |
| Number of Members | 7 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 7 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.131 tons |
| Dimensions (Metric) | 7.000 x 0.000 x 0.000 m |
| Dimensions (Imperial) | 22.97 x 0 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
