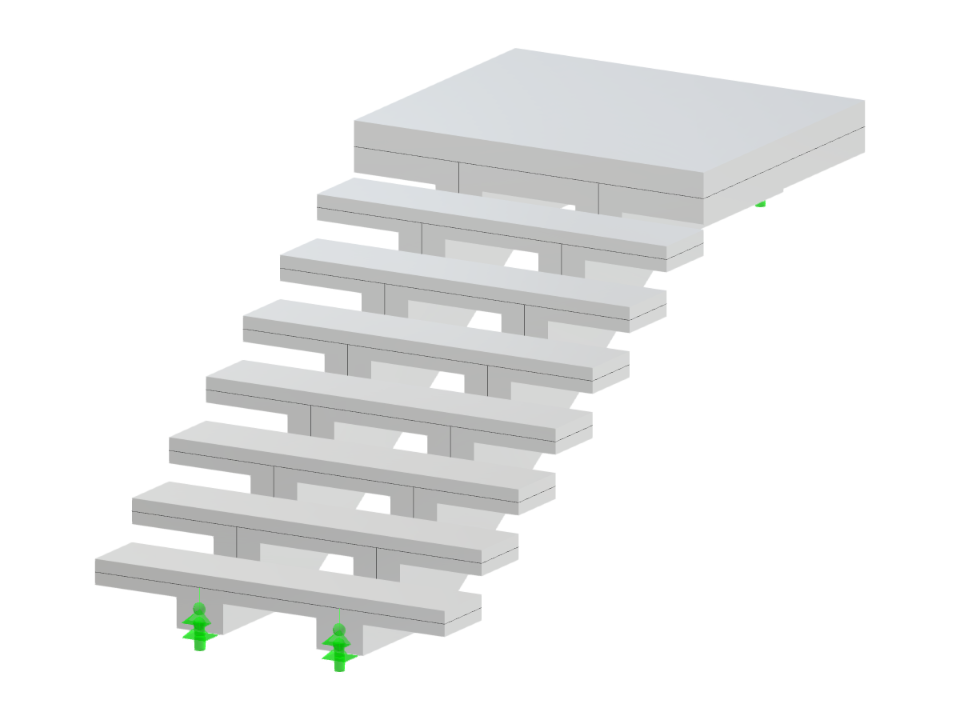

This model features a concrete single-flight staircase supported by a twin spine beam, complete with a top landing. The spine beam is strategically placed underneath the staircase treads, ensuring enhanced stability and support by anchoring it to the surrounding structure.
Concrete Staircase with Twin Spine Beam
| Block parameters editable dynamically | |
| Number of Nodes | 72 |
| Number of Lines | 72 |
| Number of Members | 0 |
| Number of Surfaces | 10 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 2.764 tons |
| Dimensions (Metric) | 1.500 x 1.360 x 3.125 m |
| Dimensions (Imperial) | 4.92 x 4.46 x 10.25 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
