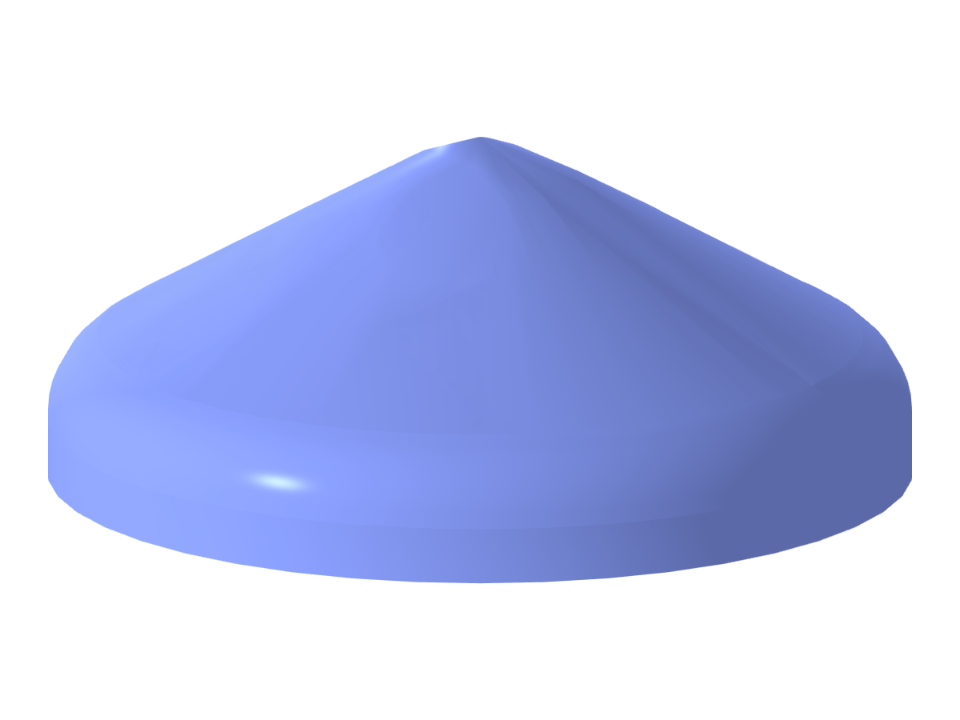

The model showcases a steel toriconical head, which is a crucial part of a pressure vessel, typically used to handle high-pressure fluids or gases. This design aids in distributing stress evenly, thereby enhancing the structural integrity of the vessel. Toriconical heads are known for efficiently handling internal and external pressures while maintaining the vessel's stability.
Steel Toriconical Head of Pressure Vessel
| Block parameters editable dynamically | |
| Number of Nodes | 4 |
| Number of Lines | 6 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 8.913 tons |
| Dimensions (Metric) | 3,000 x 1,239 x 3,000 m |
| Dimensions (Imperial) | 9.84 x 4.06 x 9.84 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
