The model represents a steel convex disc head designed for a pressure vessel, showcasing structural integrity under high pressure conditions. It offers insights into effective design using specific software tools for optimal load distribution and safety. Detailed analysis of material properties ensures compliance with industry standards.

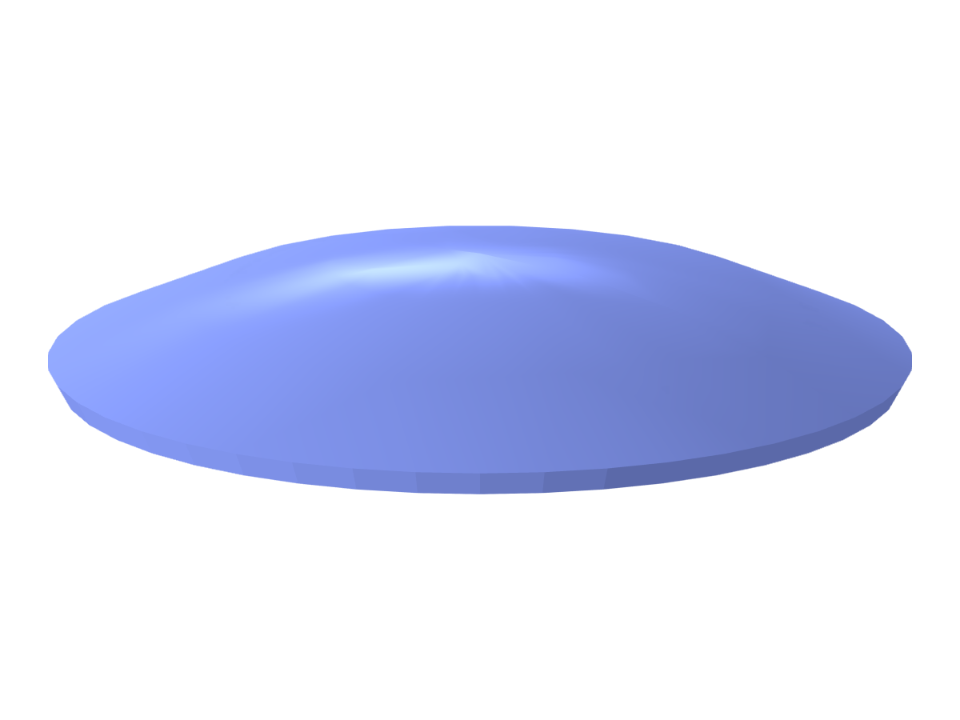

Steel Convex Disc Head of Pressure Vessel
| Block parameters editable dynamically | |
| Number of Nodes | 2 |
| Number of Lines | 2 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 5.729 tons |
| Dimensions (Metric) | 2.952 x 0.381 x 2.952 m |
| Dimensions (Imperial) | 9.69 x 1.25 x 9.69 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
