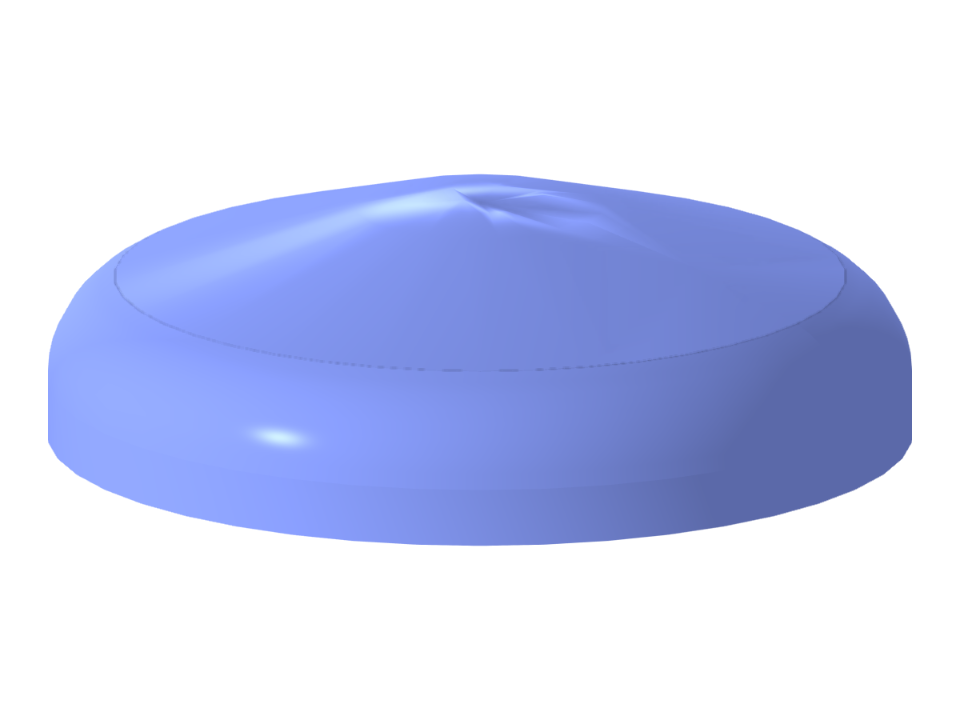

The model represents a steel torispherical head used in a pressure vessel, showcasing its structural analysis. This type of head is essential for withstanding high internal pressures, ensuring safety and durability. The analysis helps in understanding stress distribution and deformation, critical for design optimization. This model is a crucial part of safe and effective pressure vessel design.
Steel Torispherical Head of Pressure Vessel
| Block parameters editable dynamically | |
| Number of Nodes | 4 |
| Number of Lines | 6 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 8.153 tons |
| Dimensions (Metric) | 2,900 x 0,826 x 2,900 m |
| Dimensions (Imperial) | 9.51 x 2.71 x 9.51 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
