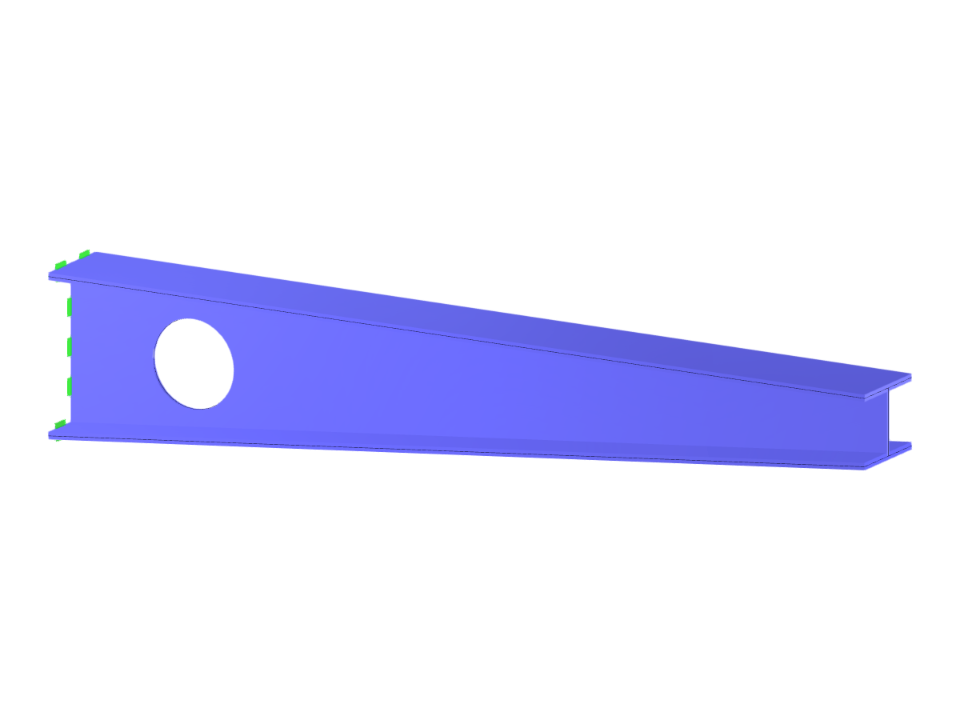

This model represents a cantilever beam created using surfaces, specifically showcasing an I-profile with a structural opening in the web. Such models are often used to analyze load distribution and structural behavior under various conditions. It highlights the capability of Dlubal Software for detailed surface creation and simulation. The model aids in understanding the stress concentration around openings in structural elements.
Cantilever I-Profile with Web Opening
| Block parameters editable dynamically | |
| Number of Nodes | 13 |
| Number of Lines | 17 |
| Number of Members | 0 |
| Number of Surfaces | 5 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.138 tons |
| Dimensions (Metric) | 2,000 x 0,350 x 0,200 m |
| Dimensions (Imperial) | 6.56 x 1.15 x 0.66 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
