003569
2022-07-16

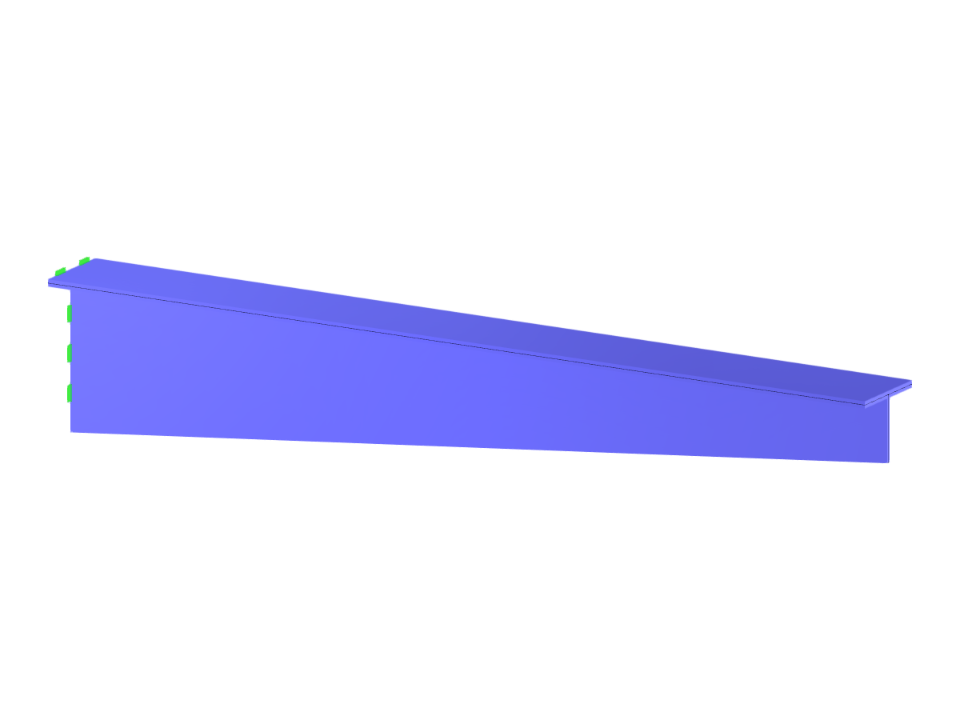

This model showcases a cantilever structure constructed using surfaces with a T-profile. The design highlights the method of surface creation which is essential for understanding structural behavior in cantilevers. The T-profile offers unique distribution of material properties, making it an insightful example for engineering applications. The model emphasizes simplicity in design and effectiveness in demonstrating cantilever principles.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Cantilever with T-Profile Created by Surfaces

Block parameters editable dynamically
Number of Nodes 8
Number of Lines 10
Number of Members 0
Number of Surfaces 3
Number of Solids 0
Number of Load Cases 3
Number of Load Combinations 0
Number of Result Combinations 0
Total Weight 0.089 tons
Dimensions (Metric) 2.000 x 0.350 x 0.200 m
Dimensions (Imperial) 6.56 x 1.15 x 0.66 feet

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
