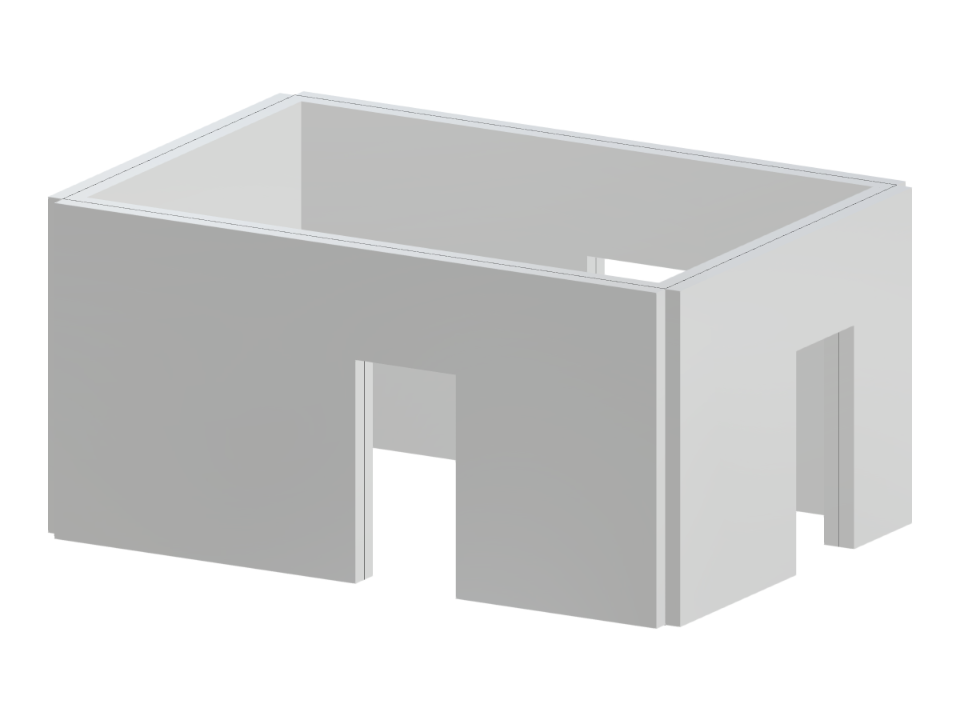

This model features a room with four walls, each containing an opening designed as a doorway. Such openings affect the structural integrity and layout planning. This setup is ideal for evaluating load distribution and thermal performance in architectural designs.
Four-Wall Room with Door Openings
| Block parameters editable dynamically | |
| Number of Nodes | 24 |
| Number of Lines | 28 |
| Number of Members | 0 |
| Number of Surfaces | 4 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 39.000 tons |
| Dimensions (Metric) | 6.000 x 3.000 x 4.000 m |
| Dimensions (Imperial) | 19.69 x 9.84 x 13.12 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
