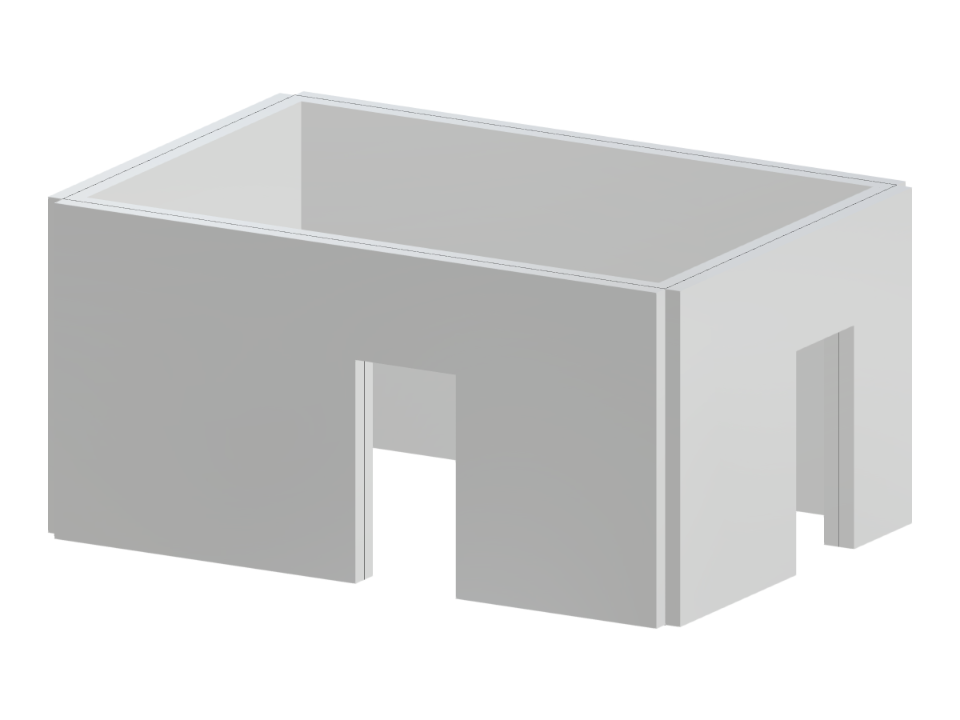

This model features a room constructed with concrete walls, incorporating two openings that serve as doorways. Designed for structural analysis, it offers insights into concrete behavior and load distribution in a simplified room structure configuration.
Concrete Room with Door Openings
| Block parameters editable dynamically | |
| Number of Nodes | 16 |
| Number of Lines | 20 |
| Number of Members | 0 |
| Number of Surfaces | 4 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 42.000 tons |
| Dimensions (Metric) | 6.000 x 3.000 x 4.000 m |
| Dimensions (Imperial) | 19.69 x 9.84 x 13.12 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
