This model represents a rectangular slab featuring a unique elliptical opening, demonstrating the complexity and adaptability of structural elements in modern engineering. The slab design provides insights into the stress distribution around irregular openings, essential for advanced structural analysis. Elliptical openings are crucial in optimizing weight and material usage, making them a valuable study in efficiency and design ingenuity.

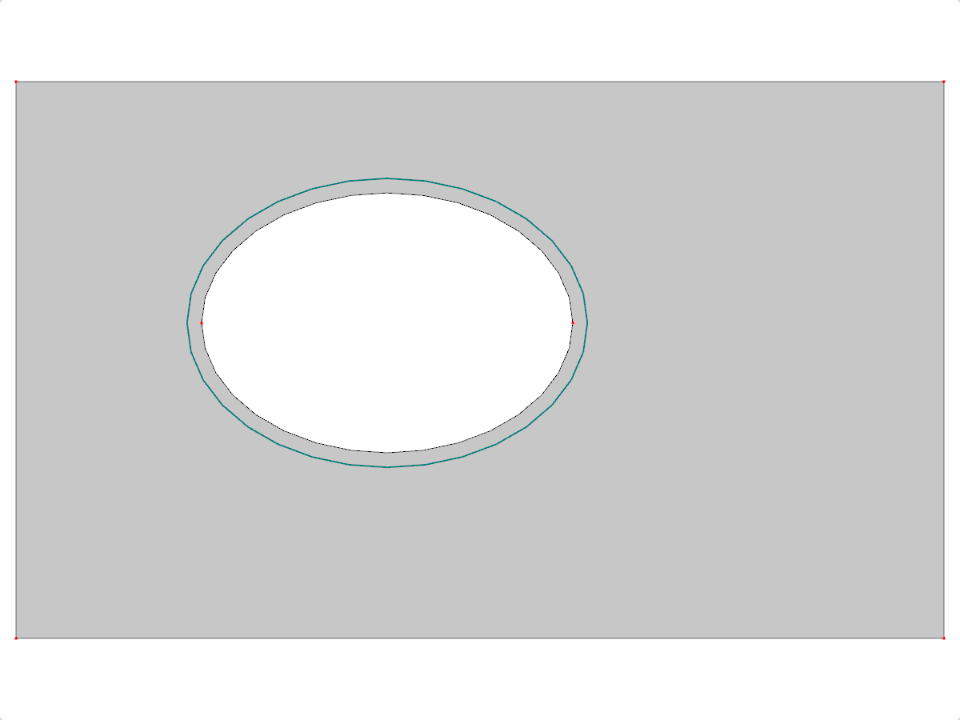

Rectangular Slab with Elliptical Opening
| Block parameters editable dynamically | |
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 3.200 tons |
| Dimensions (Metric) | 5.000 x 0.000 x 3.000 m |
| Dimensions (Imperial) | 16.4 x 0 x 9.84 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
