This model represents a structure designed with a circular arch segment surface. It exemplifies a common architectural and structural design element, often used in bridges and arch-related constructions. Such models are typically analyzed for stability and load distribution, ensuring the structural integrity of the arch under various conditions.

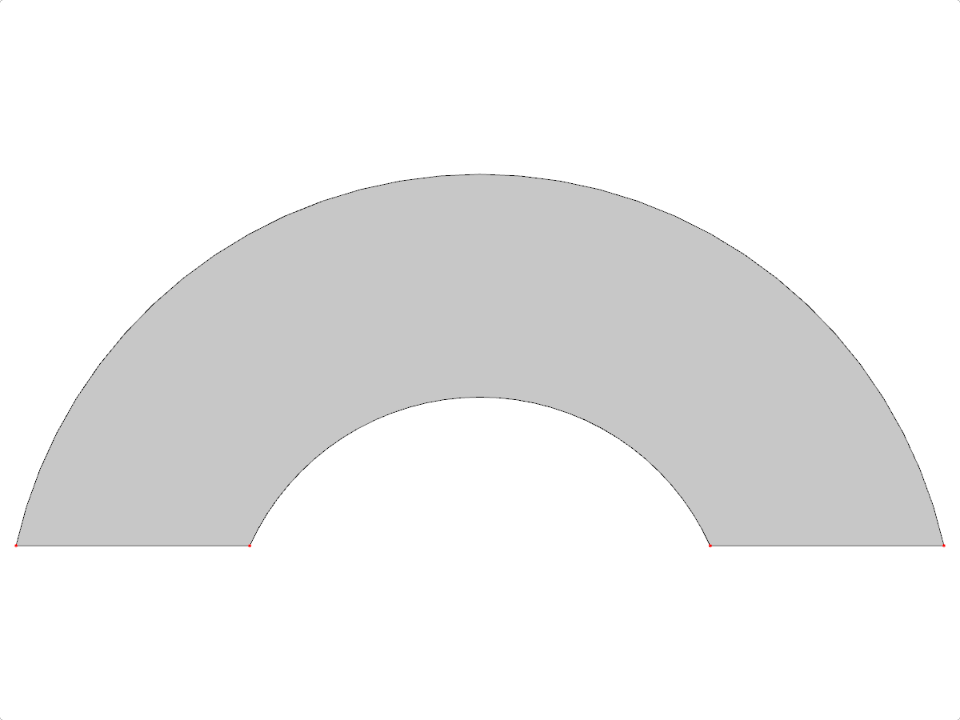

Circular Arch Segment Surface
| Block parameters editable dynamically | |
| Number of Nodes | 4 |
| Number of Lines | 4 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 2.353 tons |
| Dimensions (Metric) | 6.245 x 0.000 x 2.500 m |
| Dimensions (Imperial) | 20.49 x 0 x 8.2 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
