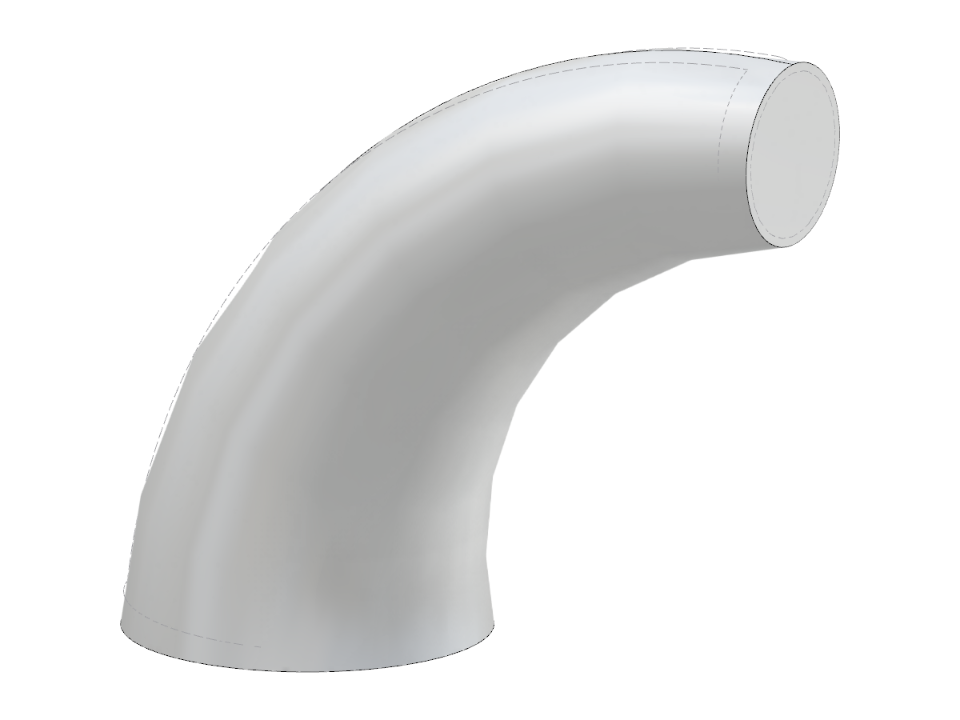

This model presents a solid with a 90-degree curve, featuring varying radii at the beginning and the end. Such configurations highlight the advanced capabilities in structural analysis and design, relevant for complex geometries often encountered in engineering projects. They serve as excellent examples of non-linear shape manipulation achievable through sophisticated software platforms.
Curved Solid With Variable Radius
| Block parameters editable dynamically | |
| Number of Nodes | 2 |
| Number of Lines | 3 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 169.918 tons |
| Dimensions (Metric) | 8.000 x 7.019 x 4.000 m |
| Dimensions (Imperial) | 26.25 x 23.03 x 13.12 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
